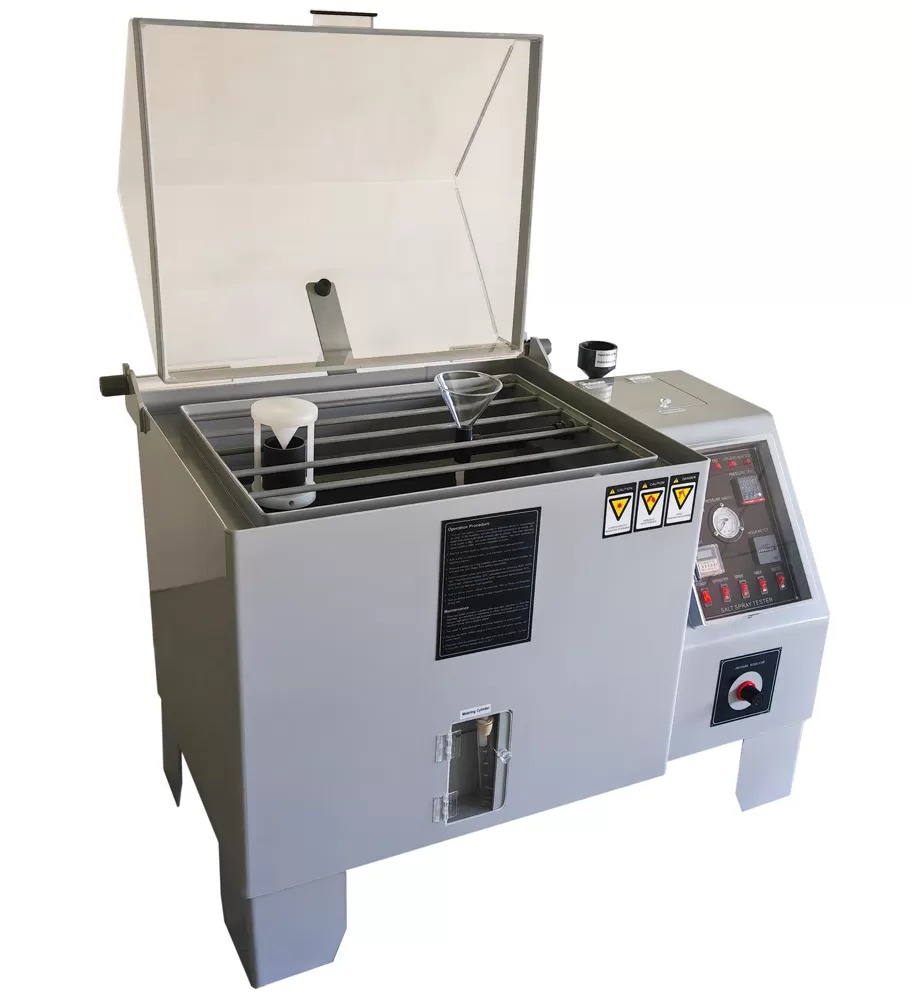

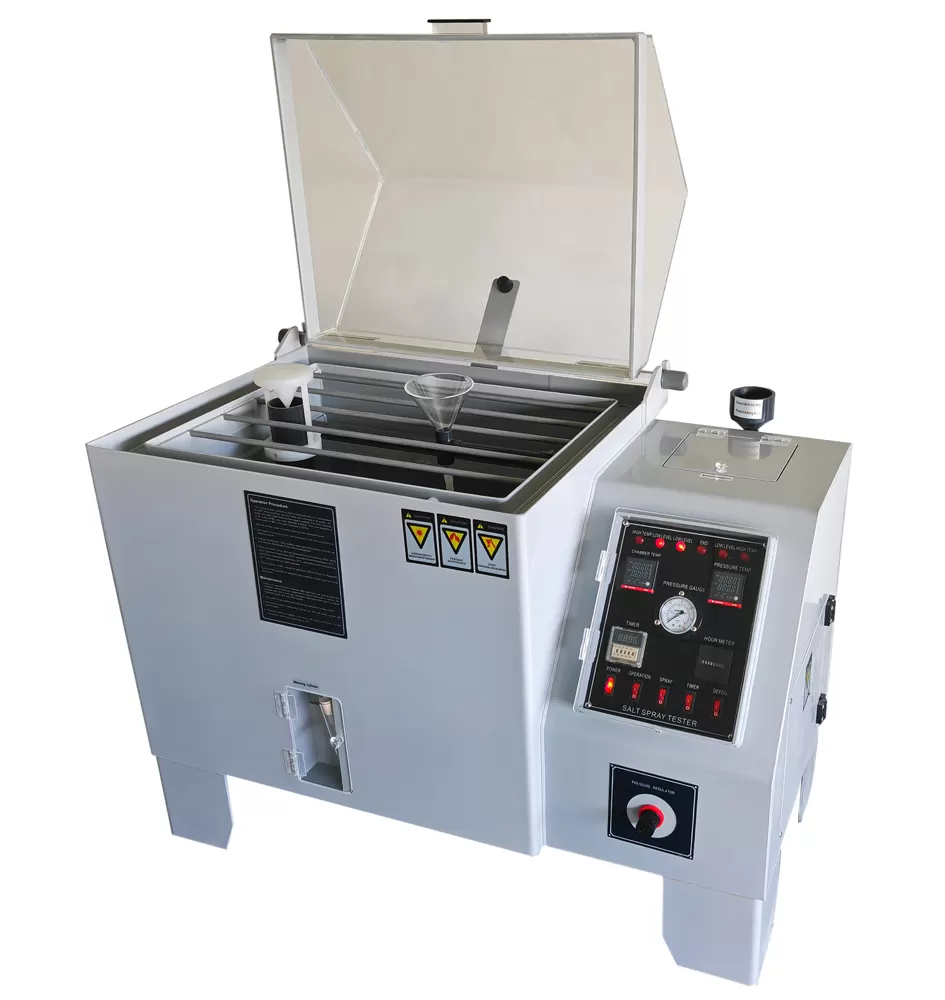

60 Salt Spray Test Chamber
Key Features
Model: HE-YW-60
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Salt spray test chamber is a professional accelerated corrosion testing equipment. It simulates harsh natural corrosive environments such as coastal salt fog, marine climate and humid industrial atmosphere. It is widely used to test the corrosion resistance of metal materials, electroplating layers, spray coatings, anodized films and various finished metal parts.
Application:
● Hardware & Electroplating Industry:
Fasteners, screws, locks, hardware accessories, zinc-plated, nickel-plated and chrome-plated parts
● Electronic & Electrical Industry:
PCB boards, connectors, metal terminals, equipment shells and precision electronic components
● Automotive Parts Industry:
Automotive metal accessories, springs, brake parts, chassis electroplated components and exterior trim parts
● Coating & Spraying Industry:
Baking paint parts, powder coating workpieces, aluminum profile oxidation parts and surface spraying products
● Military & Marine Industry:
Marine accessories, offshore metal structures and military outdoor equipment parts
● New Energy Industry:
Battery metal shells, stamping parts, photovoltaic brackets and new energy equipment hardware
● Daily Necessities Industry:
Sanitary ware, watches, jewelry and stainless steel alloy products
Specifications:
| Model | HE-YW-60 |
|---|---|
| Volume | 108L |
| Internal dimension | W600×D450×H400mm |
| External dimension | W1050×D650×H1050mm |
| Test box temperature range | NSS, AASS: 35℃±1℃ |
| CASS: 50℃±1℃ | |
| Pressure barrel temperature | NSS, AASS: 47℃±1℃ |
| CASS: 63℃±1℃ | |
| Relative humidity | ≥85%HR |
| Spray amount | 1~2 ml/ 80cm²/ hr |
| Spray pressure | 1.00±0.01kgf/cm² |
| PH | Potion PH value: neutral 6.0 ~ 7.0 Acid 3.0 ~ 3.1 |
| Spray solution PH: neutral 6.5 ~ 7.2 Acidic 3.1 ~ 3.3 | |
| Spray method | Continuous spray |
| Box material | PVC (PP or SUS 316 is optional) |
| Power supply | AC 220V, 50HZ, 2.2KW |
Characteristics:
● Standard Test Modes:
Support NSS Neutral Salt Spray, ASS Acid Salt Spray and CASS Copper Accelerated Acetic Acid Salt Spray tests to meet diverse industry standards
● Uniform Spraying System:
Equipped with precision atomization device and stable air pressure system, ensuring uniform fog particle distribution, no liquid dripping and no dry fog, which guarantees accurate test results
● Dual Working Modes:
Support continuous spraying and intermittent spraying modes, adjustable according to different test standards and product requirements
● Corrosion-resistant Body:
The inner tank and shell are made of high-quality PVC/PP/FRP/SUS316 materials, which is acid and alkali resistant, anti-corrosive, no leakage and no deformation after long-term use
● Intelligent Constant Temperature Control:
Precise temperature control system ensures stable internal test temperature, effectively avoiding test data deviation caused by temperature fluctuation
● Complete Safety Protection:
Equipped with water shortage protection, over-temperature protection and leakage protection functions to ensure safe and stable long-term operation of the equipment
● Stable Circulation System:
Independent pressure barrel and saturated air barrel design stabilize spraying pressure and salt water concentration, improving test repeatability
