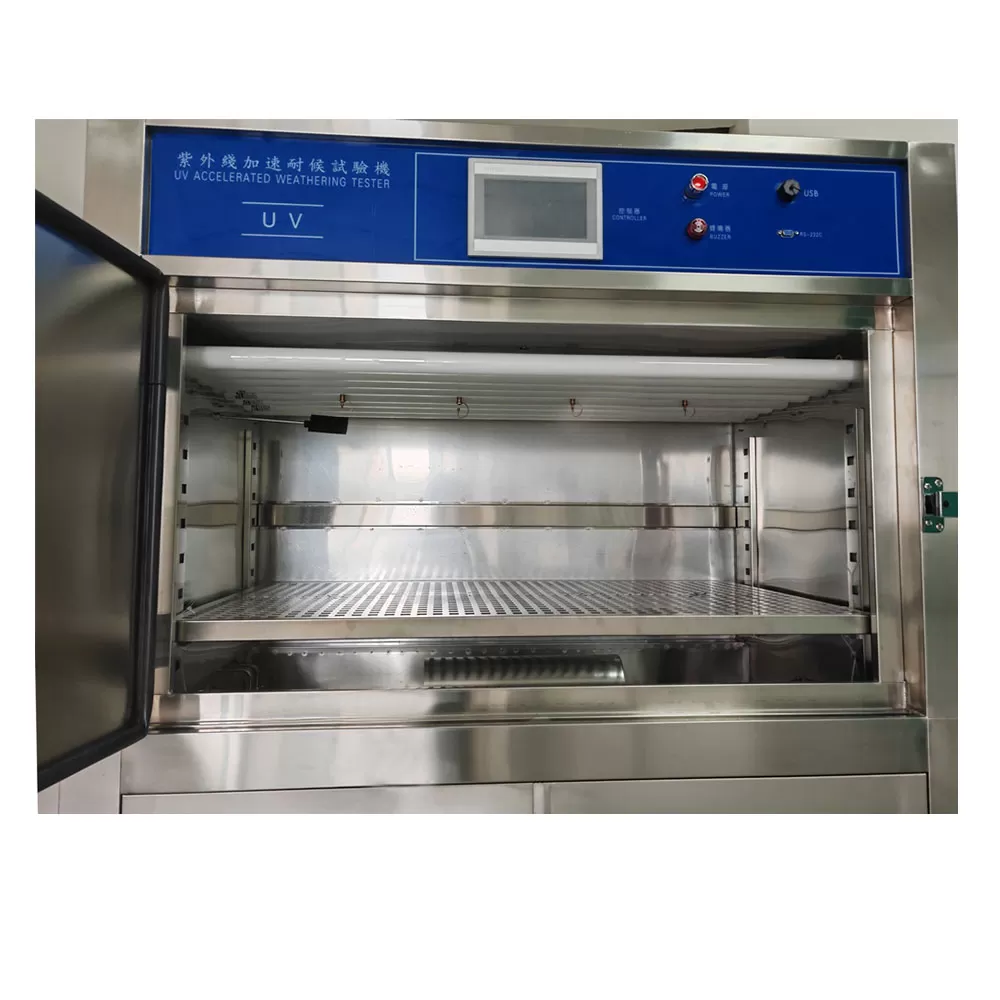

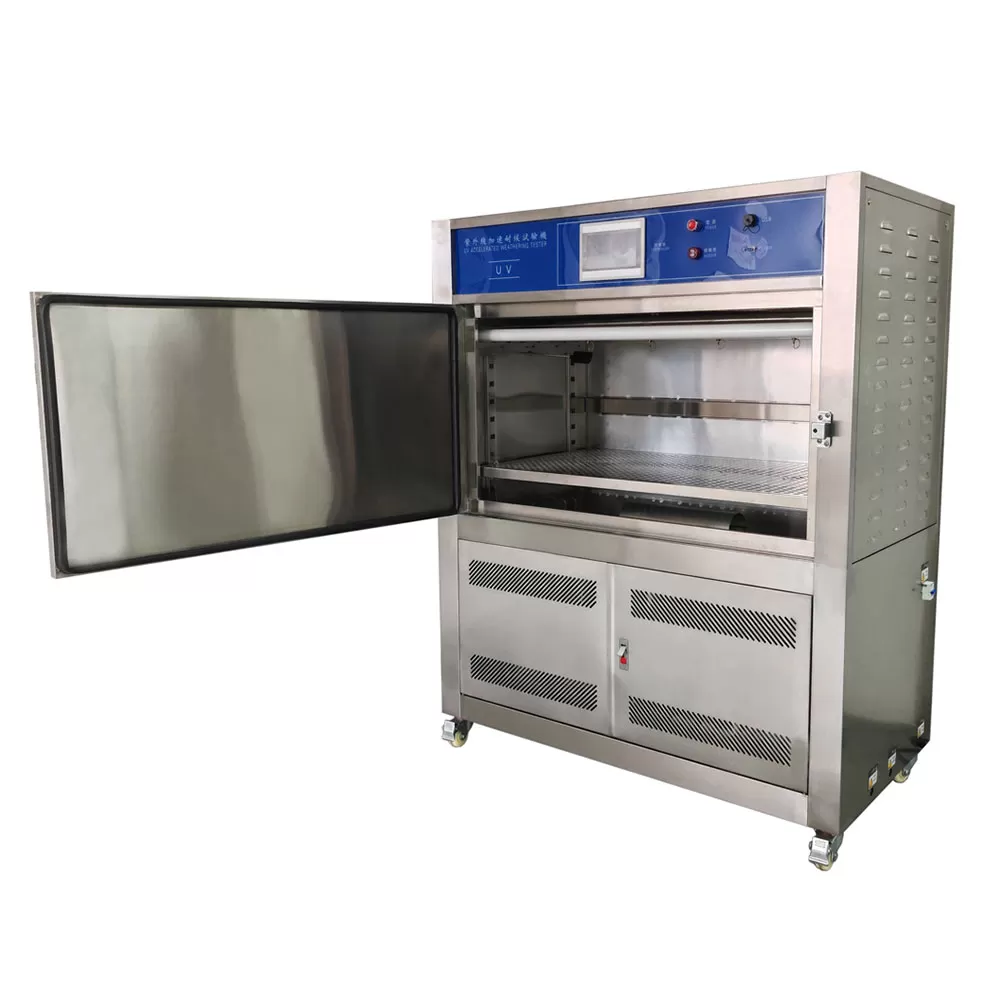

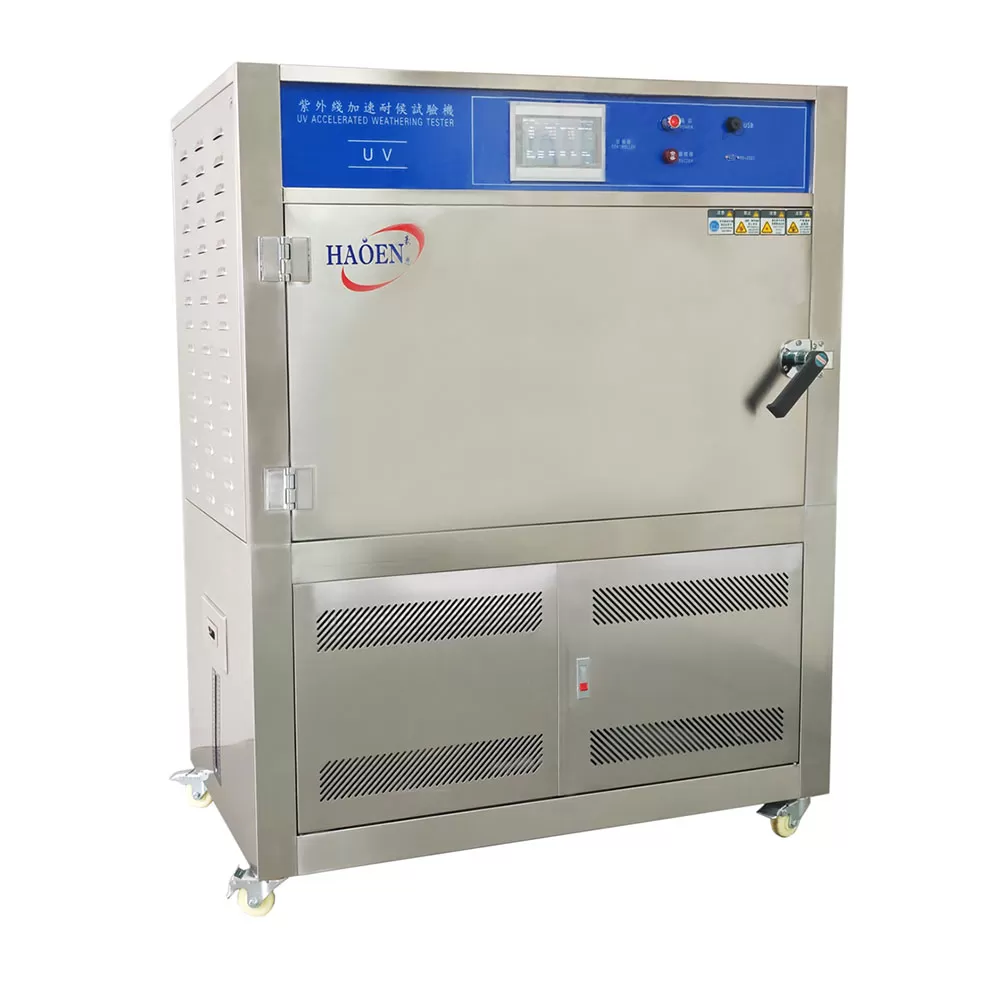

Box-type UV Aging Test Chamber
Key Features
Model: HE-UVA-2T
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
UV aging test chamber, simulates natural outdoor environmental conditions including ultraviolet radiation, rain shower, condensation and temperature & humidity cycling. It accelerates the aging process of materials to reproduce common outdoor aging phenomena such as fading, discoloration, chalking, cracking, peeling, coating delamination and mechanical strength decline. It is widely used to evaluate the outdoor service life of products, verify material durability, optimize raw material formulas and improve surface coating processes, providing reliable aging test data for product R&D and quality inspection.
Application:
● Coating & Ink Industry:
Aging and anti-fading tests for paints, powder coatings, varnishes and printing inks.
● Plastic & Rubber Industry:
Weather resistance test for ABS, PC, PP, PVC, rubber and various polymer elastic materials.
● Electronic & Electrical Industry:
UV aging detection for plastic housings, display lenses, wire harness sheaths and decorative parts.
● Packaging & Printing Industry:
Light fastness test for adhesive labels, printing films, laminated materials and color printing layers.
● Automotive Parts:
Weather aging test for automotive interior & exterior plastic parts, lamp housings, sealing strips and leather fabrics.
● Textile & Leather Industry:
Color fastness and aging performance test for fabrics, artificial leather and dyed materials.
● Building Materials Industry:
Durability test for plastic profiles, plexiglass, artificial boards, waterproof materials and outdoor decorative materials.
Specifications:
| Model | HE-UVA-2T |
|---|---|
| Internal dimension | W1140× D640× H690mm |
| External dimension | W1300× D700× H1630mm |
| Irradiometer irradiance range | 0.4～1.2 W/m² |
| Lamp type | Standard configuration: UV-A(315～400nm) |
| (UV-B(280～315nm) is optional) | |
| Lamp brand | ATLAS or Q-Lab, American original imported lamp |
| Lamp quantity | 8 lamps, each lamp is 40W |
| Lamp effective use life | 1600 hours |
| Temperature range | RT+10～70℃ |
| Humidity range | ≥90%RH |
| Power supply | AC 220V, 50HZ, 3.5KW |
Characteristics:

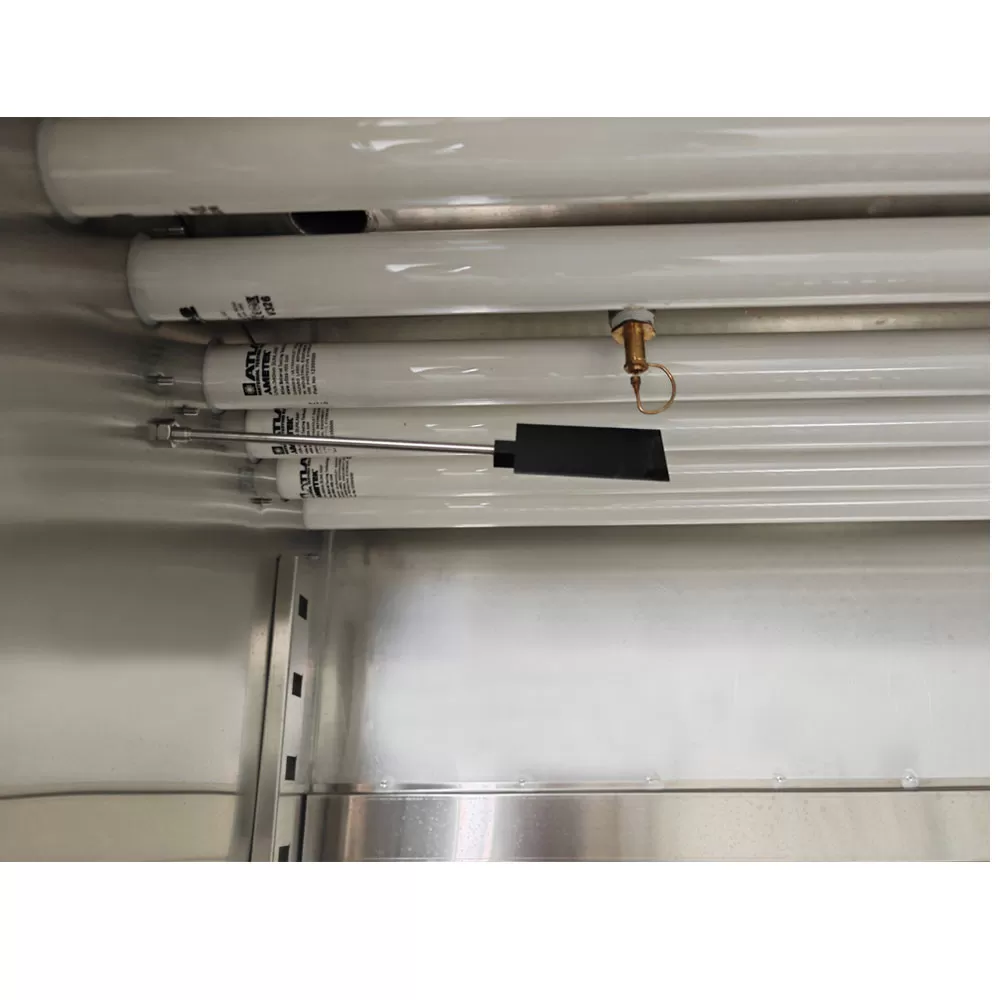

● Professional UV Light Source:
Equipped with UV340 / UV313 fluorescent UV tubes, which accurately simulate the short-wave ultraviolet band of sunlight, with stable and controllable irradiation intensity.
● Multi-cycle Simulation Mode:
Supports automatic alternating operation of UV irradiation, rain shower, condensation humidity and high-temperature drying, fully restoring real outdoor sun exposure and rain erosion environment.
● Precision Temperature Control:
Independent control of blackboard temperature and cavity temperature ensures uniform internal temperature and avoids local overheating of samples.
● Intelligent Automatic Control:
Touch screen programmable system, free setting of test time and cycle procedures, with power-off memory function, realizing unattended continuous testing.
● Efficient Condensation System:
Generates water vapor by heating purified water to form uniform condensation on the sample surface, simulating outdoor dew and humid environment.
● Rain Shower Device:
High-pressure atomizing water spray simulates natural rain scouring and thermal expansion & contraction effect, accelerating coating cracking and peeling aging.
● Durable Structural Design:
Full stainless steel inner tank, corrosion-resistant and rust-proof; multi-angle adjustable sample rack ensures uniform UV irradiation on all test samples.
