Xenon Test Chamber
Key Features
Model: HE-XD-150/HE-XD-225/HE-XD-408
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:

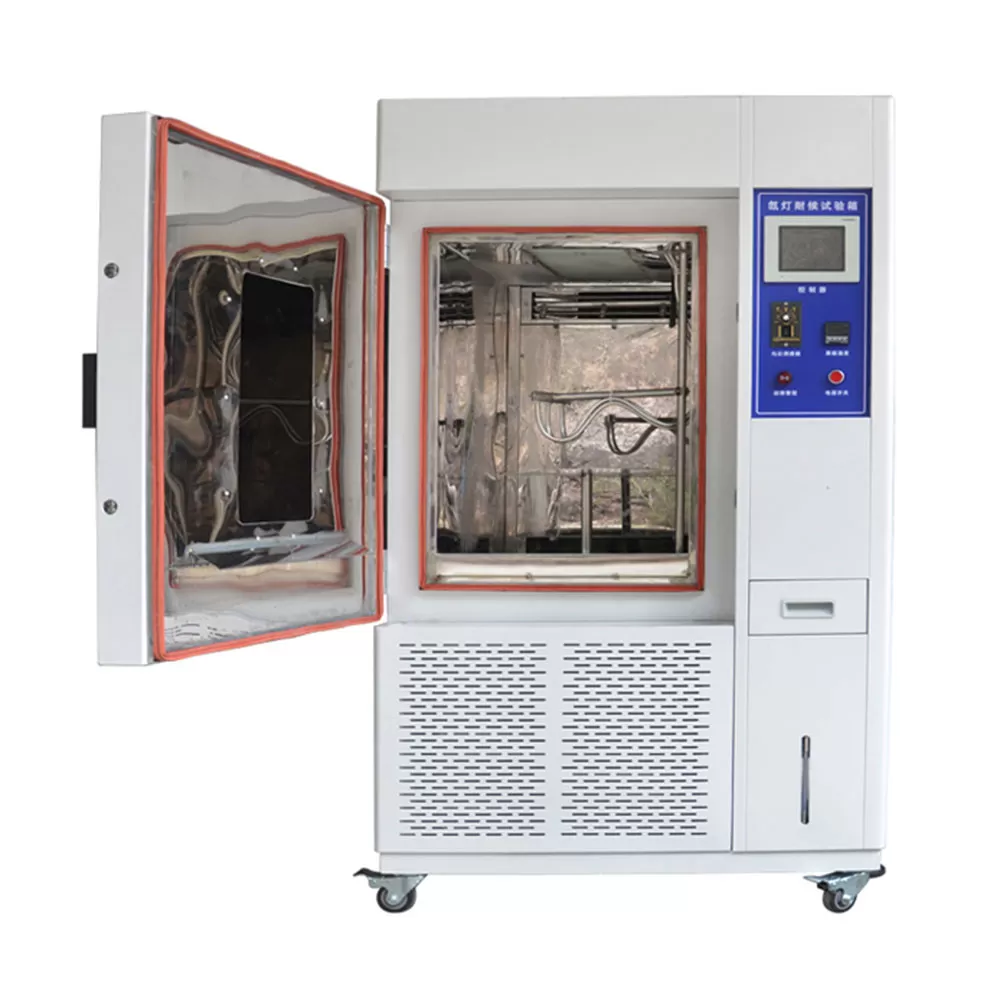

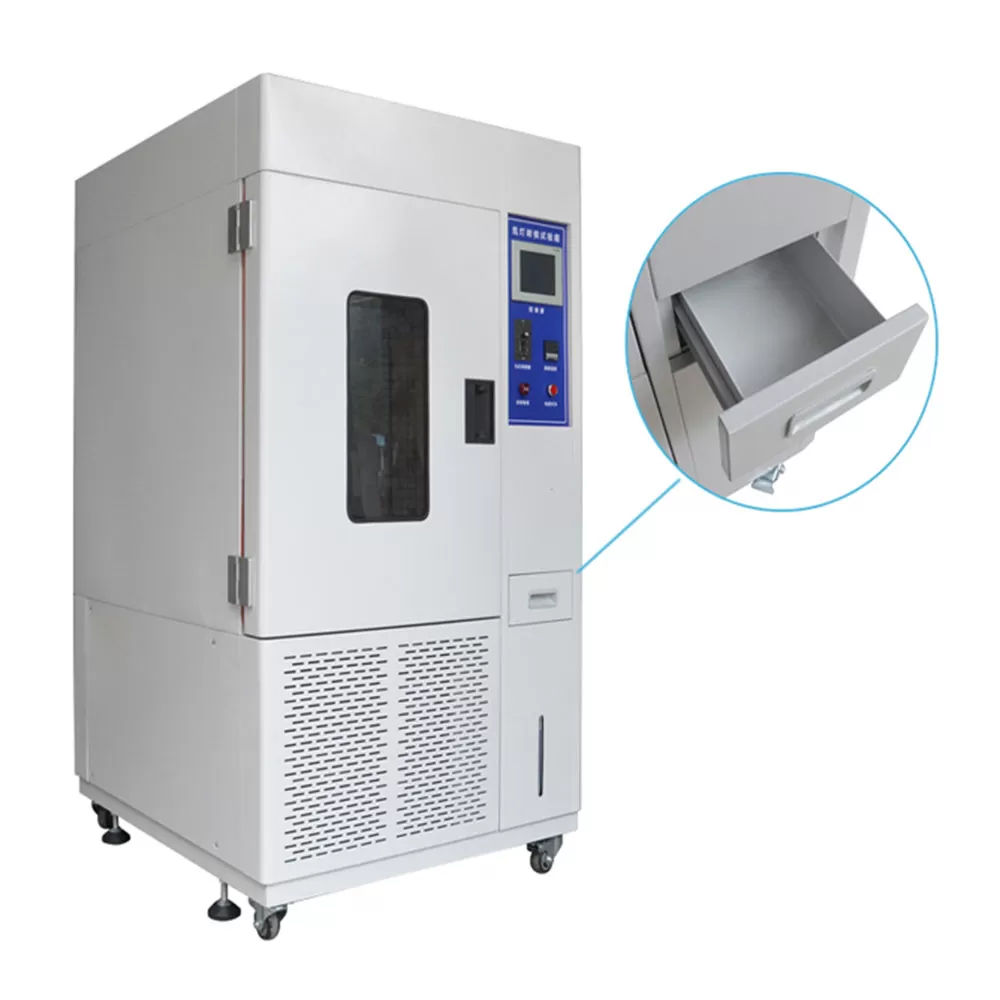

Xenon test chamber simulates full-spectrum sunlight and real outdoor climatic conditions, including light irradiation, high temperature, humidity, rain spray and condensation. It provides accelerated weathering aging tests to evaluate material durability, color fastness and mechanical stability under long-term outdoor exposure.
Application:
● Automotive:
Automotive paint, exterior & interior plastic parts, leather, fabric, rubber seals, lamp covers, dashboard, window films. Complies with SAE J2527.
● Coatings & Inks:
Architectural coatings, industrial paints, wood coatings, printing inks and sealants for weather resistance and color fastness tests.
● Plastic, Rubber & Polymers:
Outdoor profiles, pipes, films and elastomers to verify anti-aging performance and mechanical retention rate.
● Textile & Leather:
Outdoor fabrics, tents, garments and artificial leather for light fastness and anti-degradation evaluation.
● Photovoltaic & New Energy:
PV backsheet, EVA film, solar frame coating, complying with IEC 61215 for long-term reliability certification.
● Building Materials & Electronics:
Waterproof materials, exterior decoration parts, consumer electronic housings and optical components.
Specifications:
| Model | HE-XD-150 | HE-XD-225 | HE-XD-408 |
|---|---|---|---|
| Capacity | 150L | 225L | 408L |
| Internal dimension | W500×D500×H600mm | W600×D500×H750mm | W800×D600×H850mm |
| External dimension | W700xD1100xH1950mm | W800×D1100×H2100mm | W1000×D1200×H2200mm |
| Temperature range | 0℃ ~ 80℃ | ||
| Humidity range | 20 ~ 98% R.H | ||
| Spectral wavelength | 290nm～800nm | ||
| Irradiation intensity | 0.30-0.57 W/m² (at 340nm), adjustable | ||
| 0.66-1.22 W/m² (at 420nm), adjustable | |||
| 35-68 W/m² (at 300-400nm), adjustable | |||
| 350-580 W/m² (at 300-800nm), adjustable | |||
| 500-1200 W/m² (at 200-3000nm), adjustable | |||
| Power supply | AC 380V 50/60HZ | ||
Characteristics:
● Full-spectrum Xenon Light Source:
290–800nm solar spectrum simulation with replaceable daylight and window filters for indoor & outdoor scenario switching.
● Closed-loop Irradiance Control:
Stable 0.3–1.5 W/㎡ (340nm) adjustable irradiance, ensuring consistent and repeatable test conditions.
● Multi-climate Simulation:
Precise control of temperature (10℃~80℃), humidity (20%~98%RH), water spray and condensation to reproduce real outdoor weather.
● Uniform Testing Environment:
360° rotating turntable ensures even light irradiation on all samples for reliable test results.
● Cooling Options:
Air-cooled and water-cooled two types available.
● Complete Safety & Operation System:
Stainless steel inner tank, multiple safety protections, touch screen control and exportable test data.
● Wide Standard Compliance:
Meets ISO 4892-2, GB/T 16422.2, ASTM G155, SAE J2527 and other global industry standards.
