Product Details
High-quality industrial equipment for your manufacturing needs

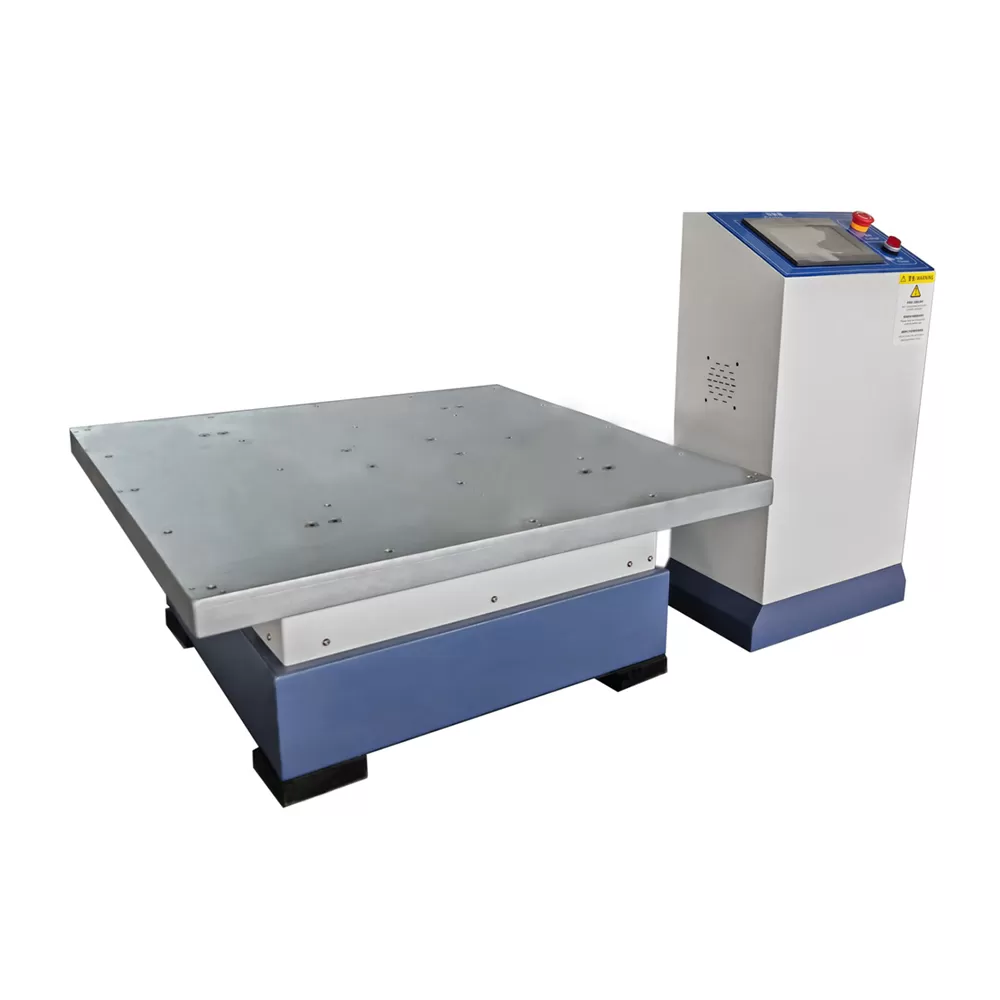

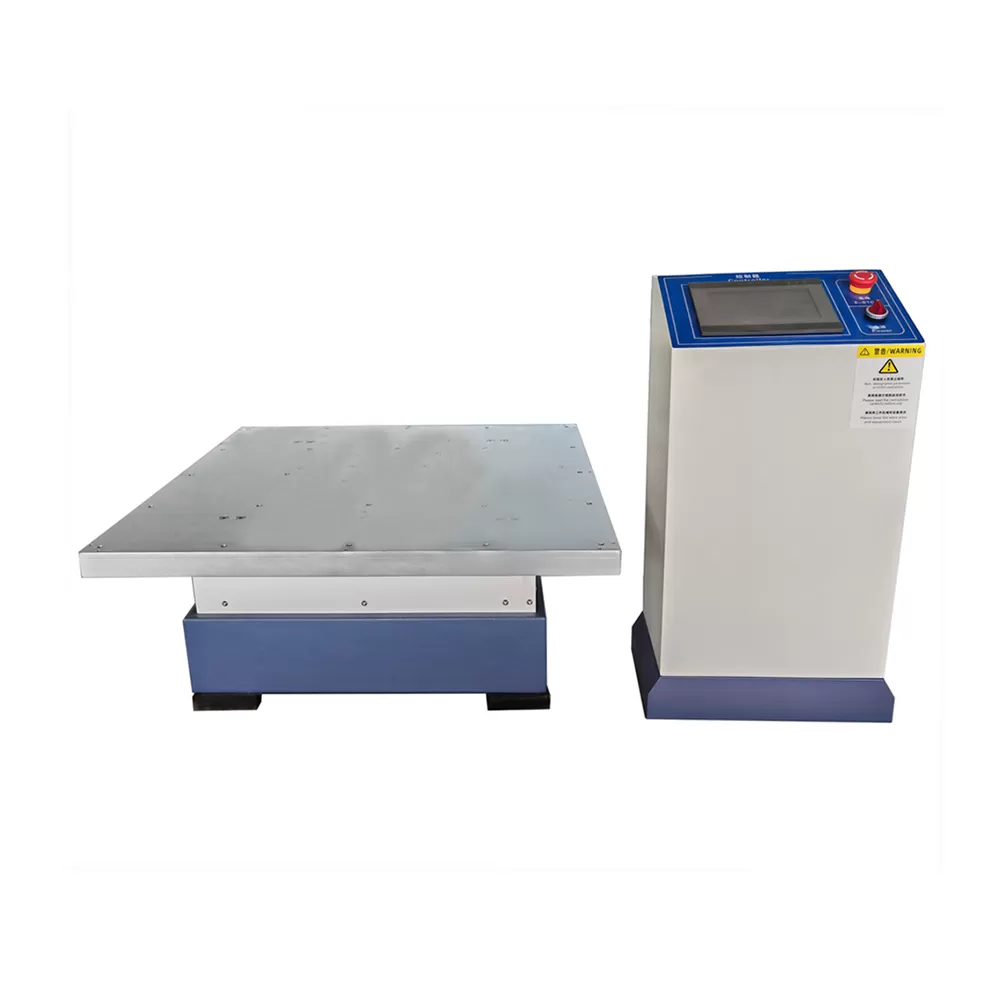

75 Vertical-Vibration-Table
Key Features
Model: HE-Z-50P7/HE-Z-75P7/HE-Z-100P7
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
The electromagnetic vibration table accurately simulates the vibration, bump, resonance and impact conditions encountered in the production, transportation, assembly and actual use of the product by electromagnetic excitation method, and comprehensively verifies the structural strength, component stability and packaging protection performance of the product.
Application:
It is widely used in new energy, automotive parts, electronic & electrical appliances, aerospace & military industry, medical devices, rail transit, packaging logistics, and home appliance industries. It is suitable for reliability tests of lithium batteries, auto accessories, PCBA boards, sensors, precision instruments, communication equipment, and more, supporting full-process product certification, mass production quality control, and export inspection.
Specifications:
| Model | HE-Z-50P7 | HE-Z-75P7 | HE-Z-100P7 |
|---|---|---|---|
| Work table size | W50xD50xH32 cm | W75xD75xH35 cm | W100xD100xH36 cm |
| Frequency range | 1～600HZ / 1000HZ / 2000HZ / 3000HZ (adjustable) | ||
| Maximum load | 50 KG / 100KG or customized | ||
| Acceleration | Peak 10g or 20g | ||
| Amplitude | 0～5mm | ||
| Vibration direction | Vertical direction, Z axis | ||
| Vibration waveform | Sine wave | ||
| Test mode | Fixed frequency, sweep frequency, double frequency, program, logarithm, random | ||
| Power supply | AC 220V 50HZ±5% 1.5KW | ||
Characteristics:
● Complete vibration mode
Supports sinusoidal sweep frequency, fixed frequency, random, logarithmic, program, and frequency-doubled vibration. Three-axis (X/Y/Z) independent vibration switching is available.
● Digital control system
Equipped with special vibration control software, automatically record the curve and store the test report.
Vertical and horizontal integrated structure, without additional tooling can switch three-axis vibration, reduce clamping time.
● Low noise, environmental protection and energy saving
Compared to mechanical vibration tables, it has lower noise, controllable electromagnetic drive energy consumption, and no hydraulic oil leakage pollution.
