Boiling Test Chamber
Key Features
Model: HE-SZ-600/HE-SZ
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:

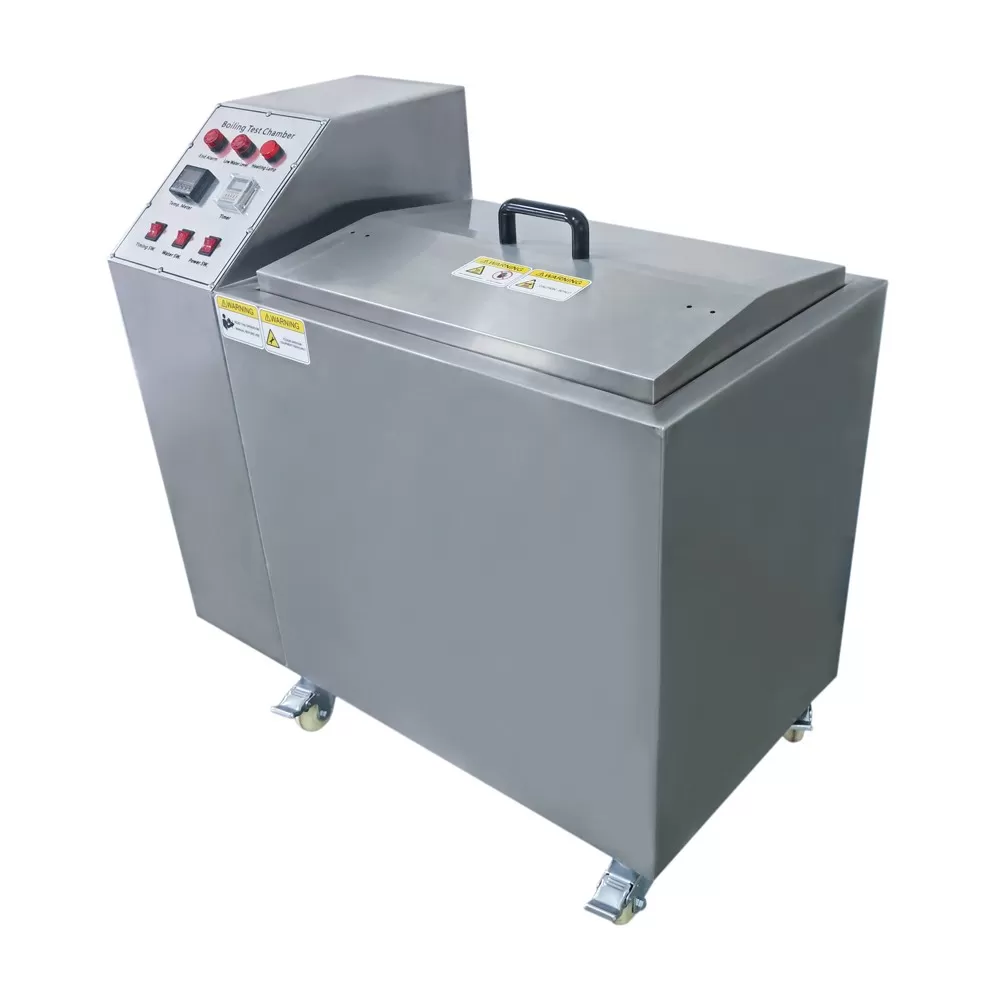

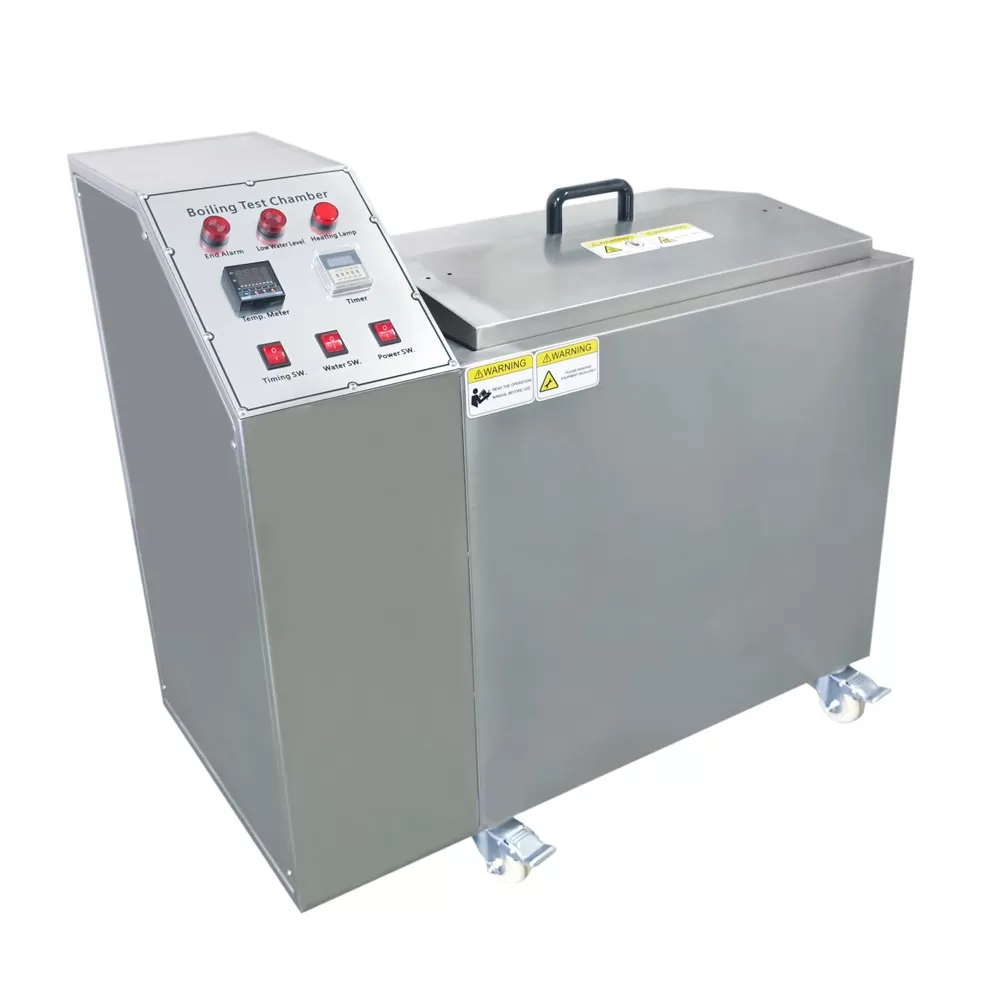

Boiling test chamber, by immersing samples in 0-100 ℃ constant temperature boiling water to simulate long-term high temperature and humidity, wading immersion conditions, quickly verify the water resistance, sealing and aging resistance of the product, and shorten the research and development verification cycle.
Application:
● Glass optical industry
Building laminated glass, automotive front windshield laminated glass, insulating glass, photovoltaic laminated glass, lens lenses, PVB film
● Electronic semiconductor industry
PCB circuit boards, connectors, IC chips, capacitors and resistors, LCD modules, waterproof sensors, wire and cable harnesses
● Automotive parts industry
Vehicle plastic interiors, lamp covers, wire harness connectors, rubber sealing strips, waterproof sensor housings
● Plastic, hardware, surface treatment industry
ABS/PC/PP plastic casings, electroplated hardware parts, anodized parts, sprayed workpieces, decorative coatings
● Electrical building materials industry
Insulators, lightning arresters, cable sealing components, rubber gaskets
● Food, pharmaceutical packaging industry
Composite packaging films, plastic medicine bottles, aluminum foil bags, sealed bottle caps
● Household appliances, coatings and chemical industry
Kettles, coffee machine sealing components, waterproof motor housings; Coatings: various paints, ink water resistance tests
Specifications:
| Model | HE-SZ-600 | HE-SZ |
|---|---|---|
| Internal dimension | W600×D400×H400mm | Customized |
| External dimension | W950xD650xH900mm | Customized |
| Inner box material | SUS304 stainless steel, thickness of 1.0mm (or SUS 316 stainless steel) | |
| Outer box material | SUS304 stainless steel, thickness of 1.0mm | |
| Temperature range | RT+10～100℃ | |
| Temperature uniformity | ±1.0℃ | |
| Power supply | AC 220V, 50HZ | |
Characteristics:
● All stainless steel corrosion resistant chamber

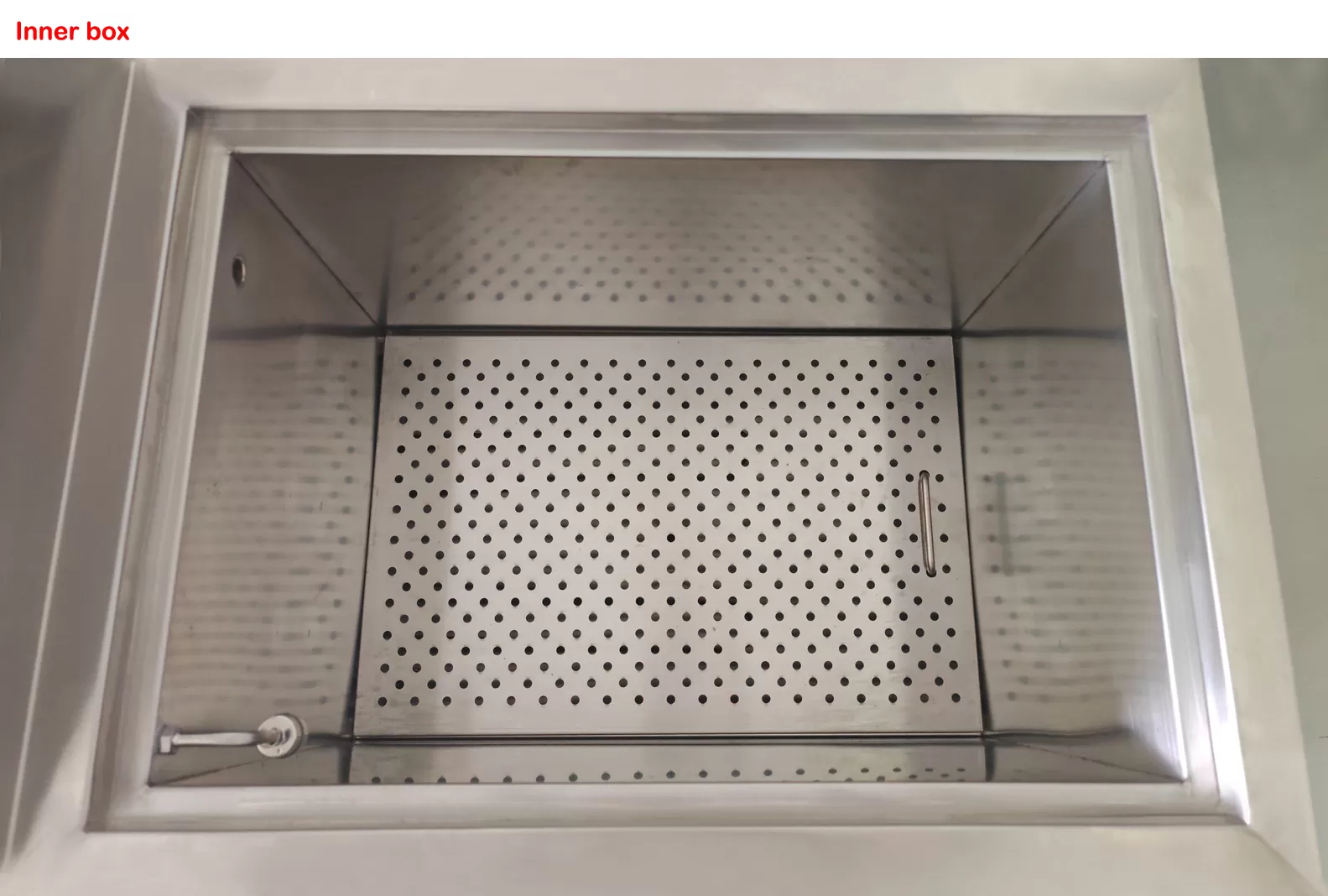

The inner liner is made of SUS304/SUS316 and is integrated without any seams. It is resistant to acids and alkalis, rust-proof, and easy to clean the scale; the outer shell is made of SUS304 stainless steel, with double-layer rock wool insulation, and the outer wall is not hot to touch, maintaining stable temperature.
● Global water circulation constant temperature system

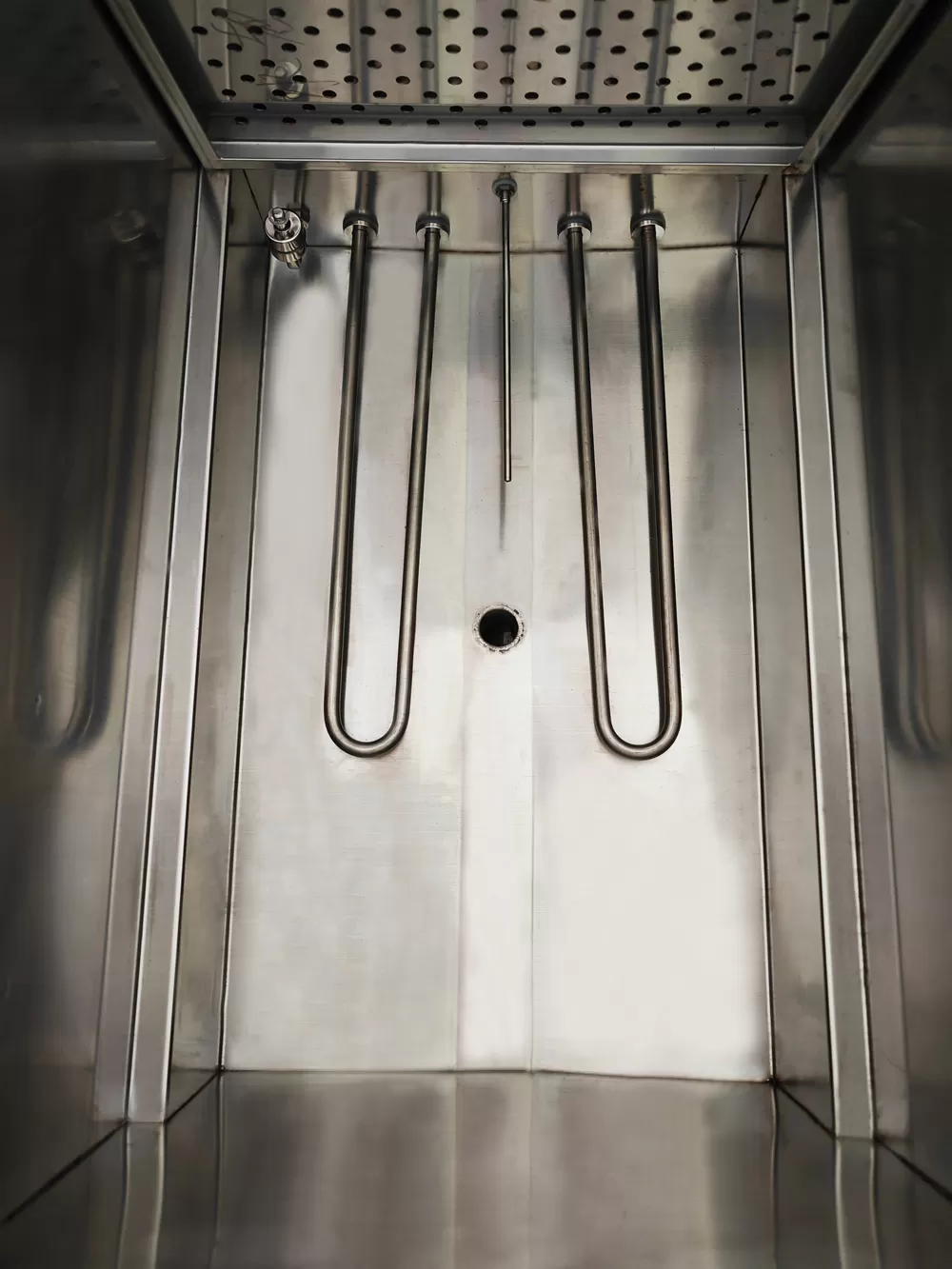

Large-sized box built-in silent circulation pump continuously circulates the water body, eliminating temperature dead zones, with the water temperature uniformity within ±1℃; the U-shaped stainless steel immersed heating tube heats up quickly and has high thermal efficiency.
● High-precision intelligent PID control system

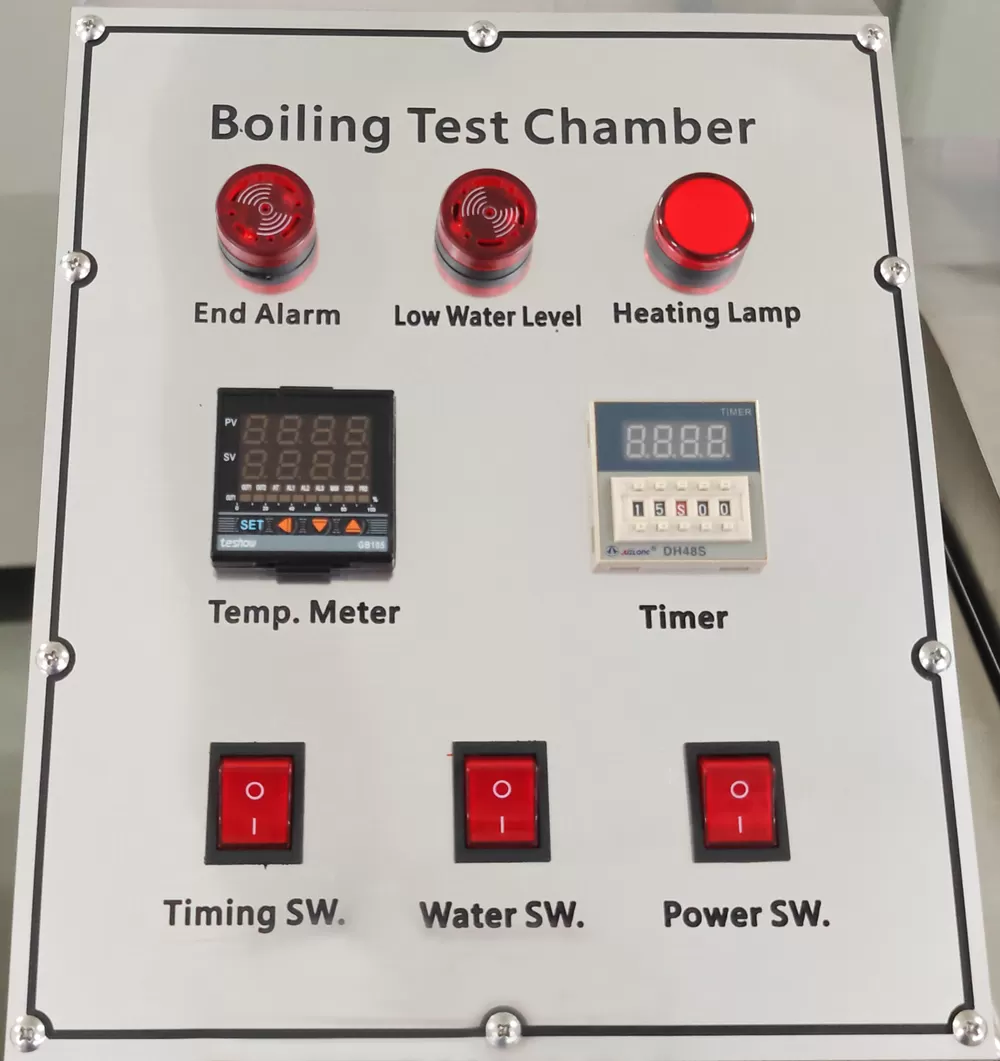

Touch screen / digital display dual versions, with temperature display accuracy of 0.1℃; temperature adjustable from 0 to 100℃, timing adjustable from 0 to 9999 minutes. The touch screen supports multi-stage stepped programs, and automatically stops and alarms upon completion of the test.
● Sealing and sample holding structure
The upper cover has a high-temperature-resistant silicone sealing strip to reduce steam loss; the matching multi-layer stainless steel storage basket allows the samples to be fully submerged without stacking; the bottom has brake-equipped universal wheels for easy relocation.
● Four-layer safety protection system

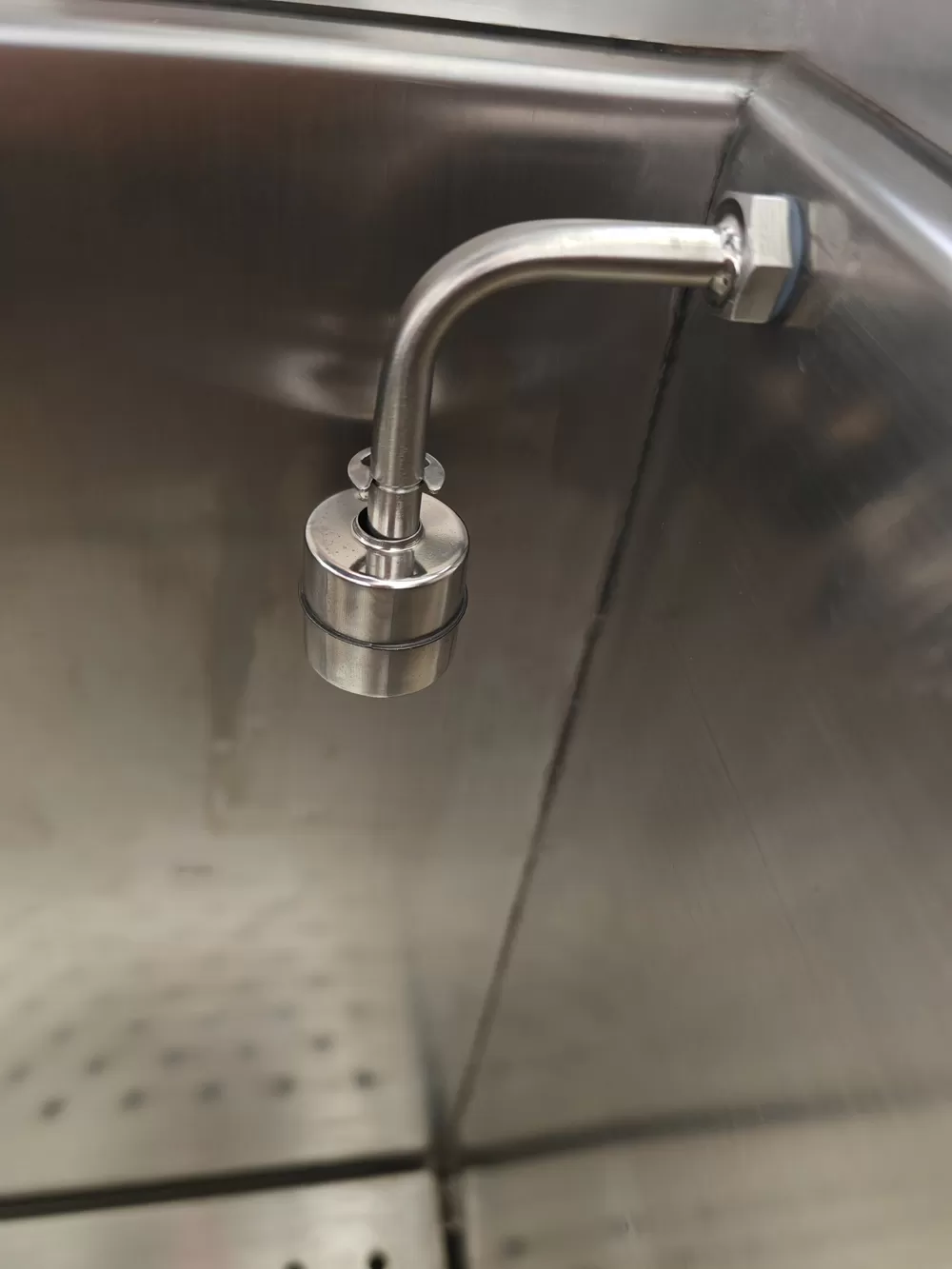

Automatic power-off in case of water shortage, dry burn protection, over-temperature cut-off, and leakage grounding protection, making it safer for long-term unmanned operation.
● Flexible matching design
Manual / automatic water replenishment, bottom drainage valve; supports non-standard large-sized customization.
