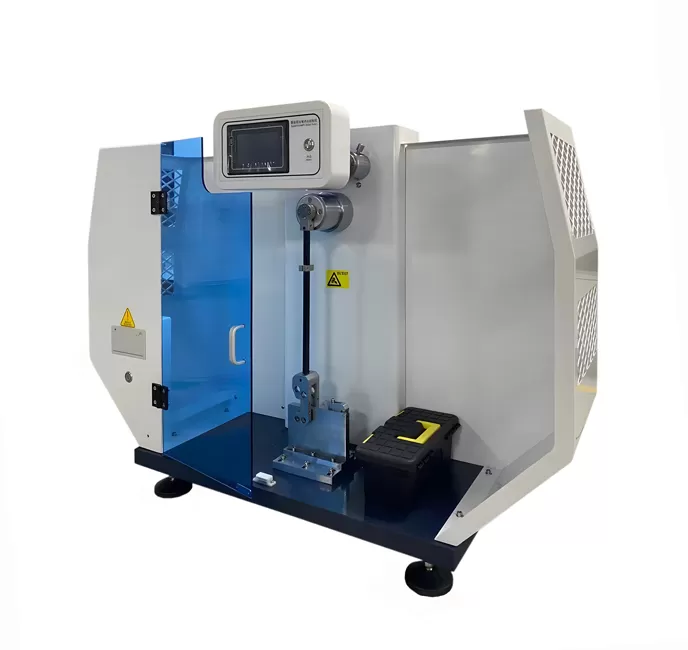

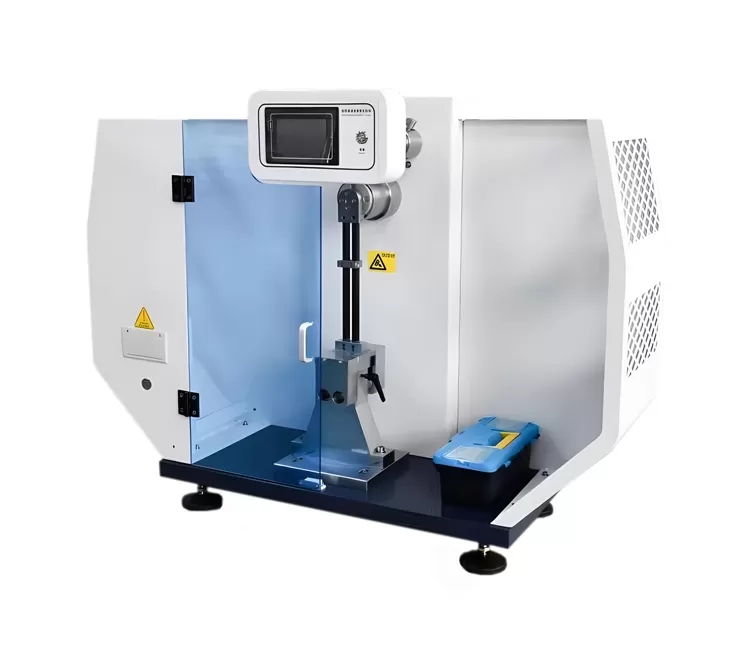

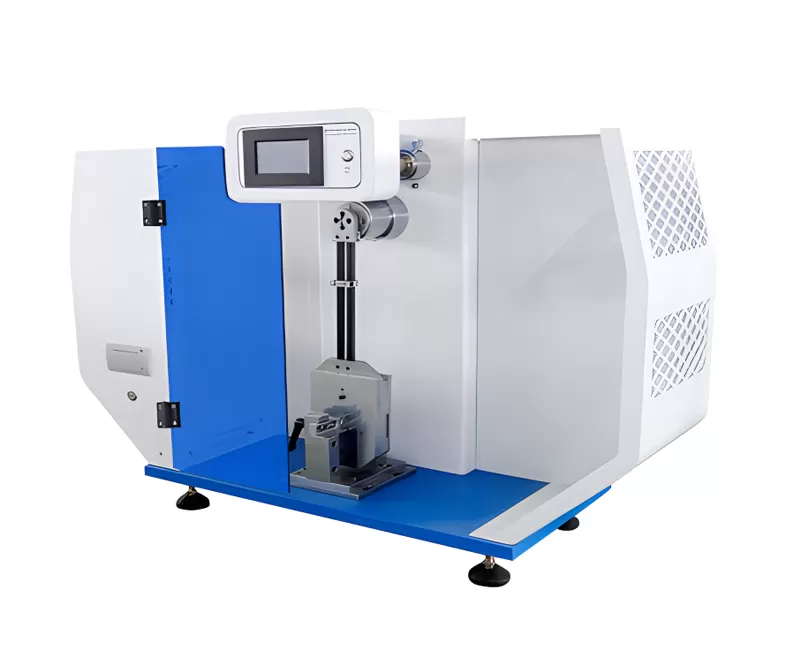

Charpy impact tester
Key Features
Model: HE-JZL-5J/HE-JZL-50J/HE-JZL-50JD
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Charpy Impact Tester is a professional pendulum impact testing instrument designed for rigid non-metallic materials. It adopts simply supported beam testing mode to detect material impact toughness by striking the middle part of standard specimens with a free-falling pendulum. It can accurately measure impact energy and impact strength of both notched and unnotched samples, helping manufacturers and laboratories evaluate material brittleness, toughness and anti-impact performance under dynamic load.
Application:
• Plastics Industry:
General plastics, engineering plastics, glass fiber reinforced plastics, plastic masterbatches, plastic pipes, sheets and injection molded parts
• Composite Materials:
FRP fiberglass products, carbon fiber composites, wood-plastic composites, epoxy resin plates
• Electrical Insulation Industry:
Bakelite, PCB insulating boards, mica plates and other electrical insulating components
• Building & New Materials:
Plastic steel profiles, artificial stone, cast stone and hard ceramic materials
• Academic & Testing Institutions:
University laboratories, scientific research institutes, third-party quality inspection centers
• End-product Manufacturing:
Automotive plastic parts, home appliance housings, electronic accessories, medical plastic parts and packaging products.
Specifications:
| Model | HE-JZL-5J | HE-JZL-50J | HE-JZL-50JD |
|---|---|---|---|
| Pendulum energy | 1J, 2J, 4J, 5J | 25J, 50J | 7.5J, 15J, 25J, 50J |
| Impact speed | 2.9 m/s | ||
| Swing Angle | 150° | ||
| Distance from pendulum center to impact blade center | 230mm | ||
| Jaw support spacing | 40mm, 60mm, 70mm, 95mm | ||
| Supporting blade edge radius | R=1mm | ||
| Impact blade Angle | 30° | ||
| Impact edge radius | R=2mm±0.5mm | ||
| Display mode | Color touch screen | ||
| Machine size | W850*D350*H690 mm | ||
| Power supply | AC 220V±10% 50HZ | ||
Characteristics:

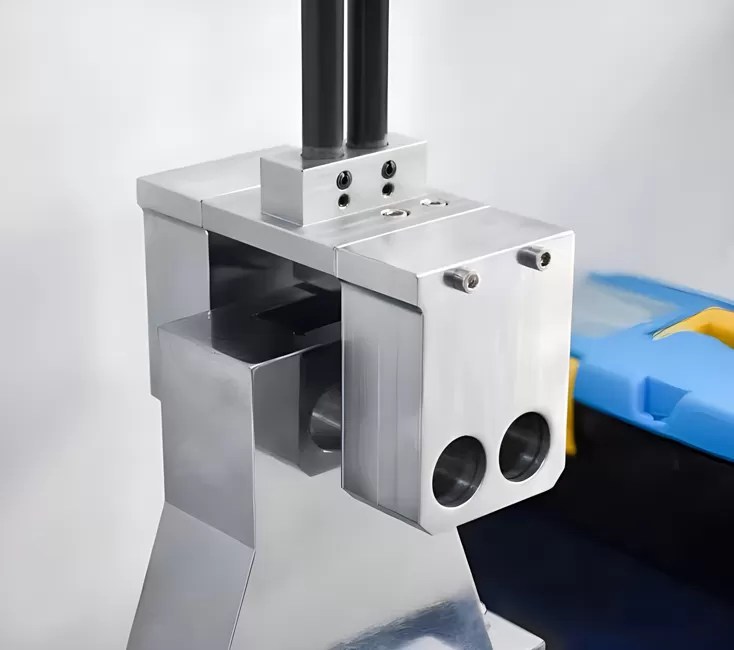

• Standard Complied Structure:
Standard simply supported beam fixture fully conforms to ISO 179, GB/T 1043.1 and ASTM D6110 international testing standards; adjustable specimen support span fits various specimen sizes

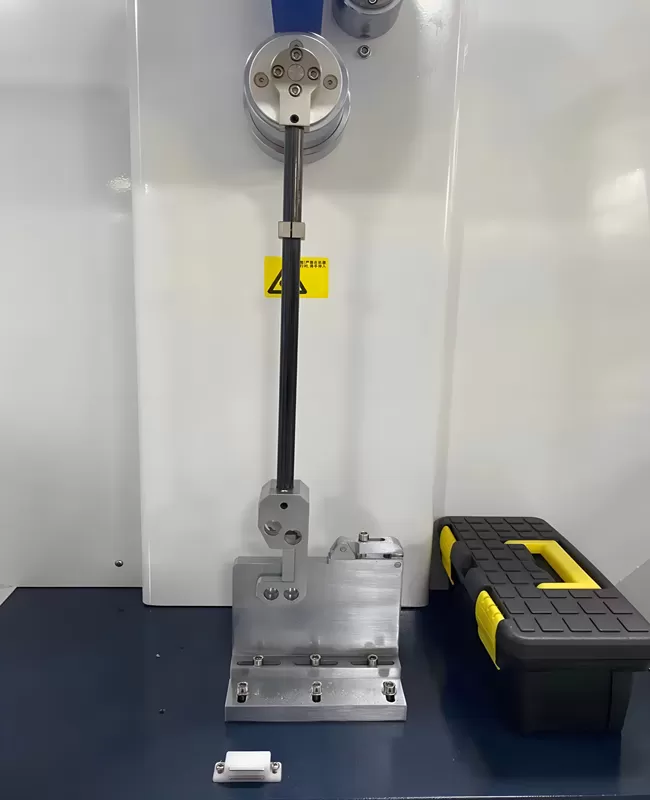

• Multi-range Interchangeable Pendulums:
Equipped with optional pendulums of 1J, 2J, 4J, 5J, 7.5J and 15J, meet the testing requirements for brittle hard materials.
• High-rigidity Integrated Body:
Thick cast iron base effectively reduces vibration and energy loss during impact, ensuring stable and repeatable test data
• Electromagnetic Automatic Release System:
Precise fixed-angle pendulum release eliminates manual operation errors, ensuring consistent impact speed for every test

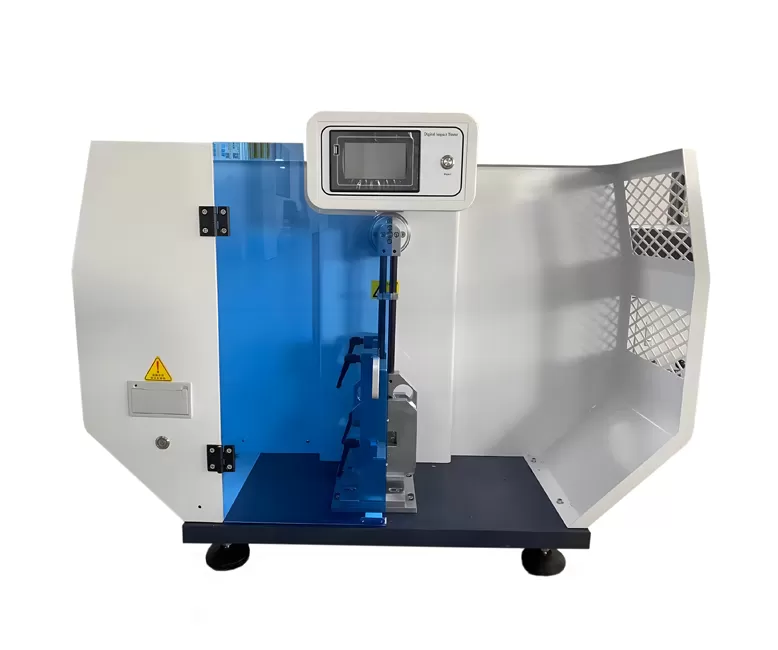

• Full Safety Protection Design:
Equipped with transparent fully enclosed protective cover, anti-rebound baffle and automatic pendulum locking device to avoid fragment splashing and ensure operator safety
• Humanized Control System:
Digital display model supports automatic data calculation; microcomputer model realizes real-time curve display, data storage, batch testing and one-click report printing & export
