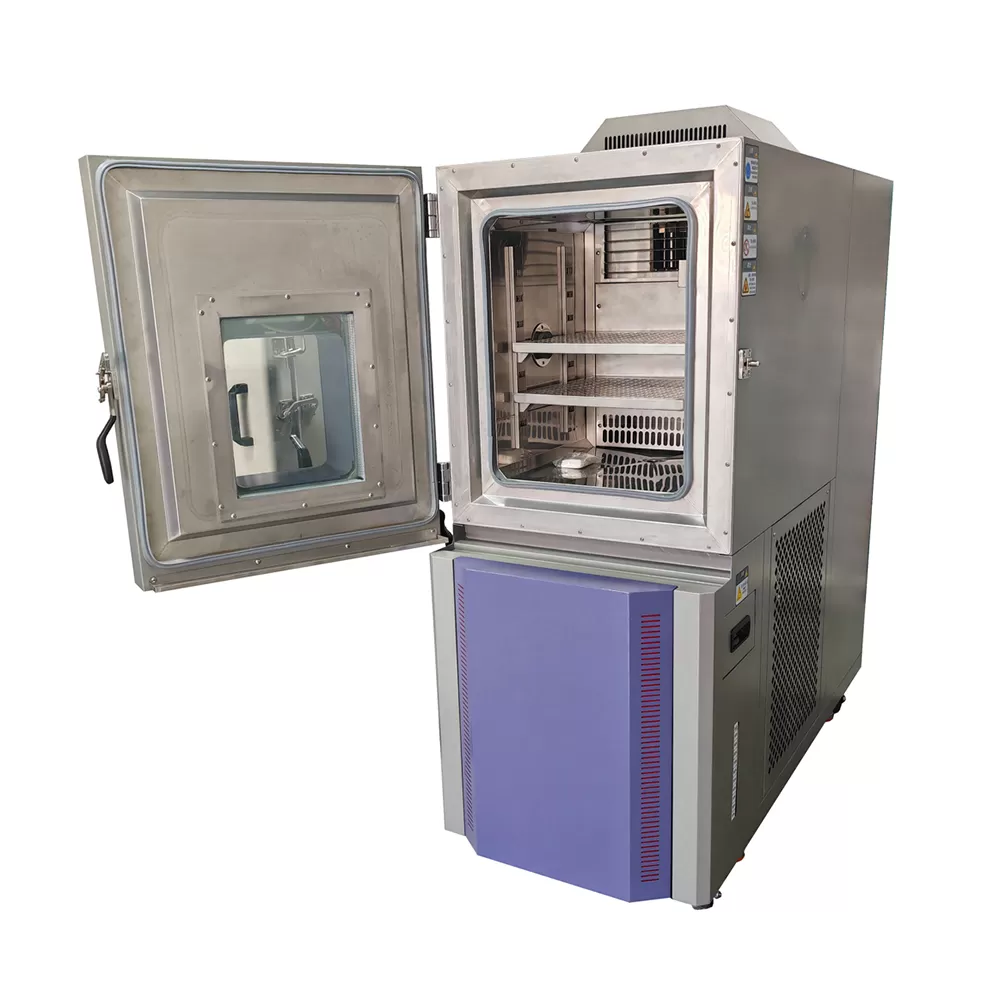

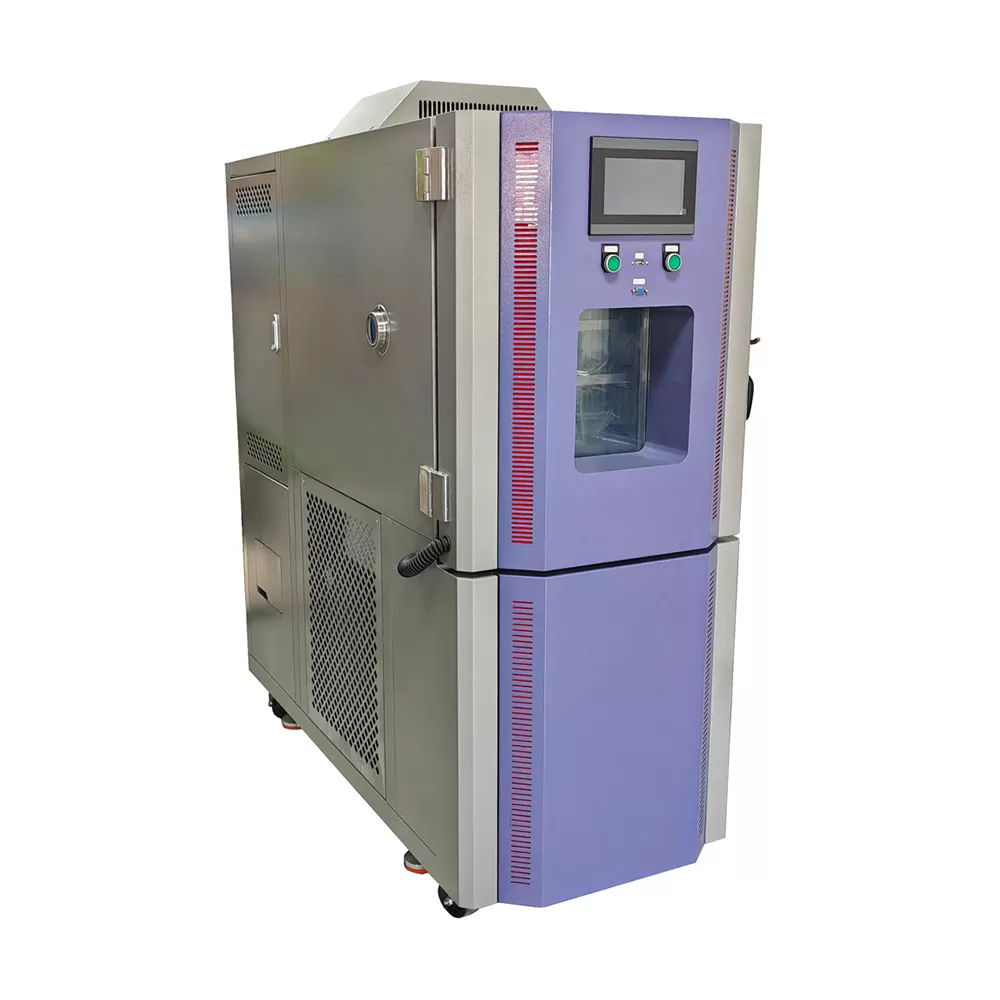

80L Climate Test Chamber
Key Features
Model: HE-WS-80A9/HE-WS-80B9/HE-WS-80C9/HE-WS-80D9
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Climate test chamber, also known as temperature humidity test chamber, is to simulate harsh environmental conditions, high temperature, low temperature, high temperature and humidity, etc.
Application:
It's is widely used in various industries, such as electronic, plastic products, electrical appliances, instrumentation, food, vehicle, metal, chemical, building materials, aerospace, medical...
Specifications:
| Model | HE-WS-80A9 | HE-WS-80B9 | HE-WS-80C9 | HE-WS-80D9 |
|---|---|---|---|---|
| Temperature range | 0℃～+150℃ | -20℃～+150℃ | -40℃～+150℃ | -70℃～+150℃ |
| Internal dimension | W400×D400×H500mm | |||
| External dimension | W700×D1370×H1570mm | |||
| Power supply | AC single-phase three-wire 220V | |||
| Temperature accuracy | 0.01℃ | |||
| Temperature fluctuation | ≤±0.5℃ | |||
| Temperature uniformity | ≤±2.0℃ | |||
| Humidity range | 20%～98%RH | |||
| Humidity accuracy | 0.1%RH | |||
| Humidity fluctuation | ≤±2.5%RH | |||
| Humidity uniformity | ≥75%RH: ≤±3%RH; ≤75%RH: ≤±5%RH | |||
| Heating rate | An average of 3℃/min | |||
| Cooling rate | An average of 1℃/min | |||
| Internal box material | SUS 304 mirror stainless steel | |||
| External box material | Cold steel paint treatment | |||
| Refrigeration system | Compressor: Japan Sanyo or Hitachi, single-stage or two-stage compressor | |||
| Cooling method: air-cooled | ||||
| Refrigerant: R404A or R23 | ||||
| Control system | Programmable 7 inch touch screen controller | |||
| Output: RS 232 or USB interface, complimentary online software | ||||
Characteristics:

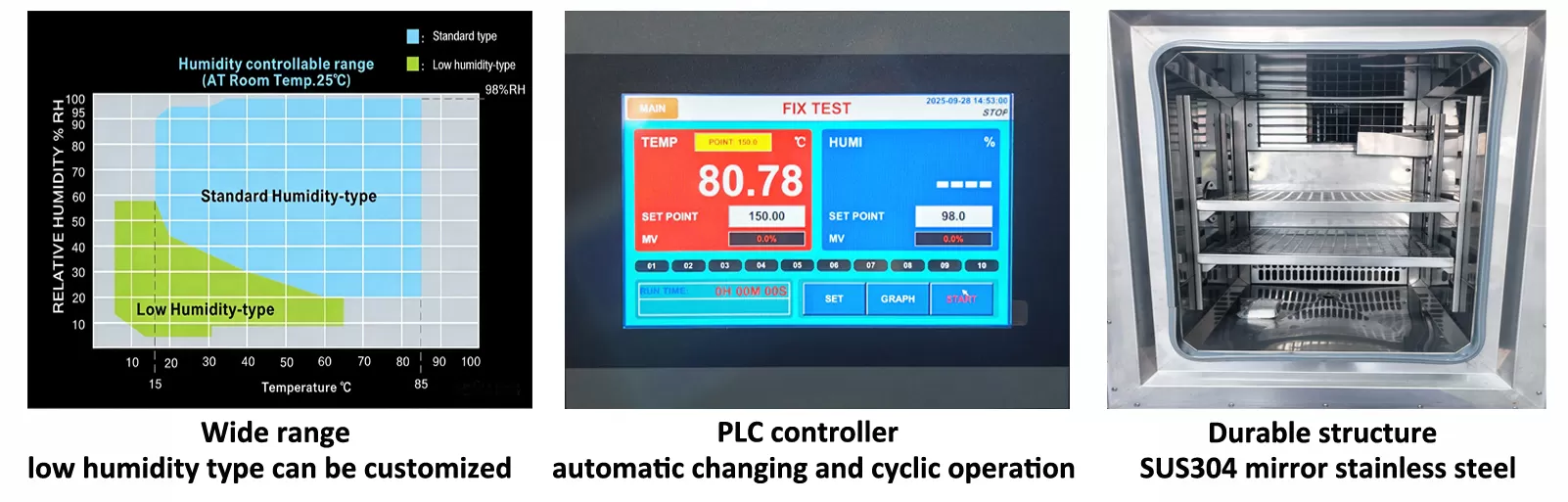

● Wide temperature range & high precision temperature and humidity control;
Covers a wide temperature range from -70℃ to 150℃ and humidity range from 20%RH to 98%RH. Optional ultra-low humidity version down to 5%RH. Adopts advanced balanced temperature and humidity adjustment system, good uniform.
● Intelligent Programmable & Automatic Operation;
Equipped with full-color touch screen PLC controller. Built-in data recording and curve storage functions allow data export via USB or RS232.
● Durable structure & low energy consumption & low failure rate;
Inner chamber adopts SUS304 mirror stainless steel, high-density polyurethane integral foam insulation layer, high-quality compressor + air-cooled cooling system, refrigeration dehumidification structure.
● Excellent safety protection system & long service life & stable continuous operation.
Comes with complete safety protection functions, equipped with high-quality original compressor and stable air circulation system.
Details:

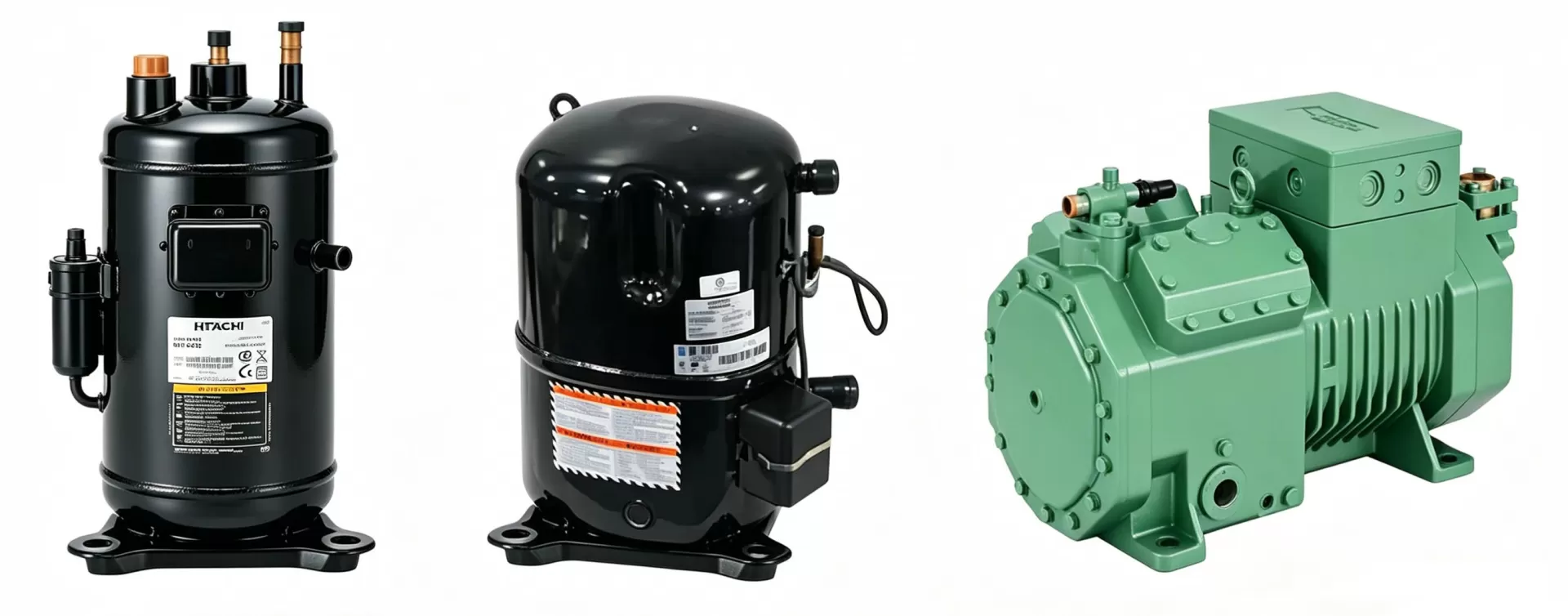

Premium Brand Compressor
Adopts world-famous brand hermetic compressors with single-stage or two-stage compression design for different low-temperature requirements. High cooling efficiency & low power consumption, low vibration and low noise during running. Built-in high/low pressure & overload safety protection to avoid unit breakdown. Stable refrigeration performance enables 24h non-stop cyclic testing, long service lifespan and minimal failure rate.
