Product Details
High-quality industrial equipment for your manufacturing needs

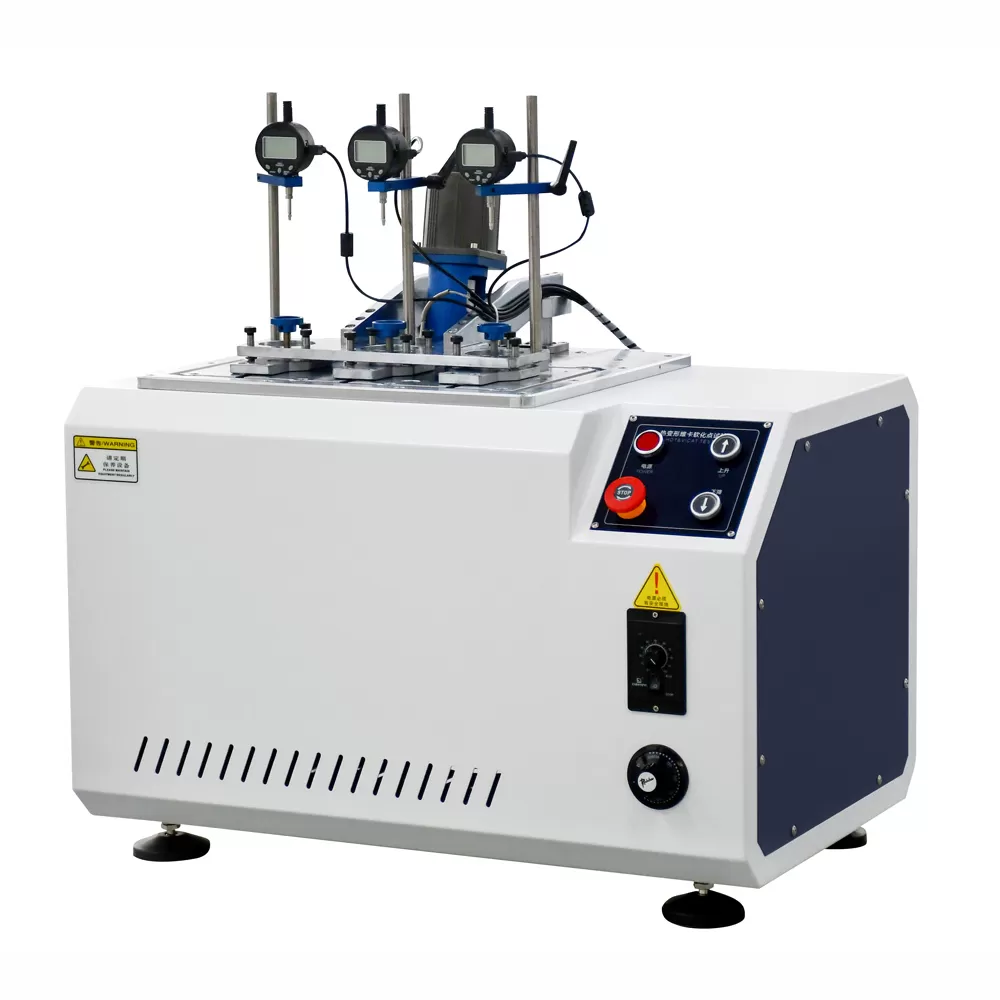

Computer Control VICAT Tester
Key Features
Model: HE-VC-300C/HE-VC-300D
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
VICAT Tester, softening point temperature measuring instrument using PLC programmable controller temperature adjustment using computer display operation. The product is simple to operate, easy to use, stable performance, high precision, and in the test process can be real time monitoring test temperature and deformation; At the end of the test, the system automatically stops heating, and the test report and test curve can be printed. This series of models is the quality inspection units, colleges and universities and enterprises of the necessary instruments for self-inspection.
Application:
The machine is mainly used for non-metallic materials such as plastic, rubber, nylon, electrical insulation materials such as thermal deformation temperature and vicat softening point temperature determination.
Specifications:
| Model | HE-VC-300C | HE-VC-300D |
|---|---|---|
| Control mode | Touch screen control | Computer |
| Sample rack loading mode | Manual | Electric |
| Temperature range | RT-300℃ | |
| Heating rate | (120±10)℃/h (12±1)℃/6min | |
| (50±5)℃/h (5±0.5)℃/6min | ||
| Deformation measuring range | 0-10mm | |
| Number of sample rack | 3 (Optional 4 stations 6 stations） | |
| Load rod and pallet weight | 68g | |
| Test span | According to standard 64 or 100mm | |
| Tank volume | About 20L | About 25L |
| Heating medium | Methyl silicone oil or transformer oil | |
| Cooling mode | Above 150℃ natural cooling, below 150℃ water cooling or natural cooling | |
| Machine size | W750*D560*H800mm | |
| Power supply | AC 220V±10% 50HZ | |
Features:
• Intelligent PID regulation, accurate heating rate, precise temperature control without any variations
• Capable of conducting various standard spline thermal deformation tests
• Capable of conducting various standard spline Vicat softening point tests
• Can simultaneously perform thermal deformation and Vicat softening point tests
• Can automatically calculate the required load based on the test standard and spline size
• Can select two heating rates and switch freely, with simple operation
• Software overtemperature protection and external mechanical overtemperature protection double protection
Execution standard:
• IS075-2013《Plastics - Determination of load deformation temperature》
• ASTM D 648《Test method for thermal deformation temperature of plastics》
• ASTM D 1525《Test method for softening temperature of plastics Vicat》
• GB／T1633《Thermoplastics - Determination of Vicar softening temperature (VST)》
• GB／T1634《Plastics - Determination of load deformation temperature - Part 1: General test method》
• GB/T8802《Determination of softening temperature of plastic pipe fitting》
