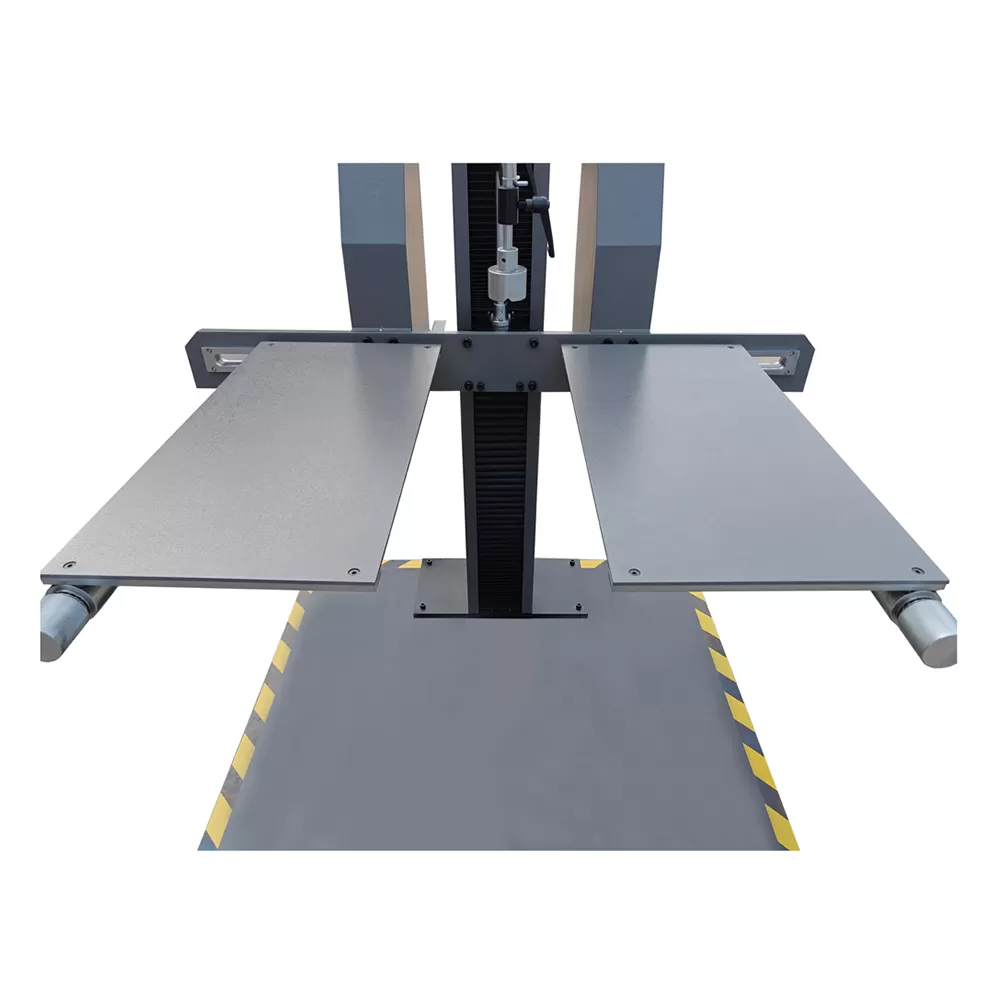

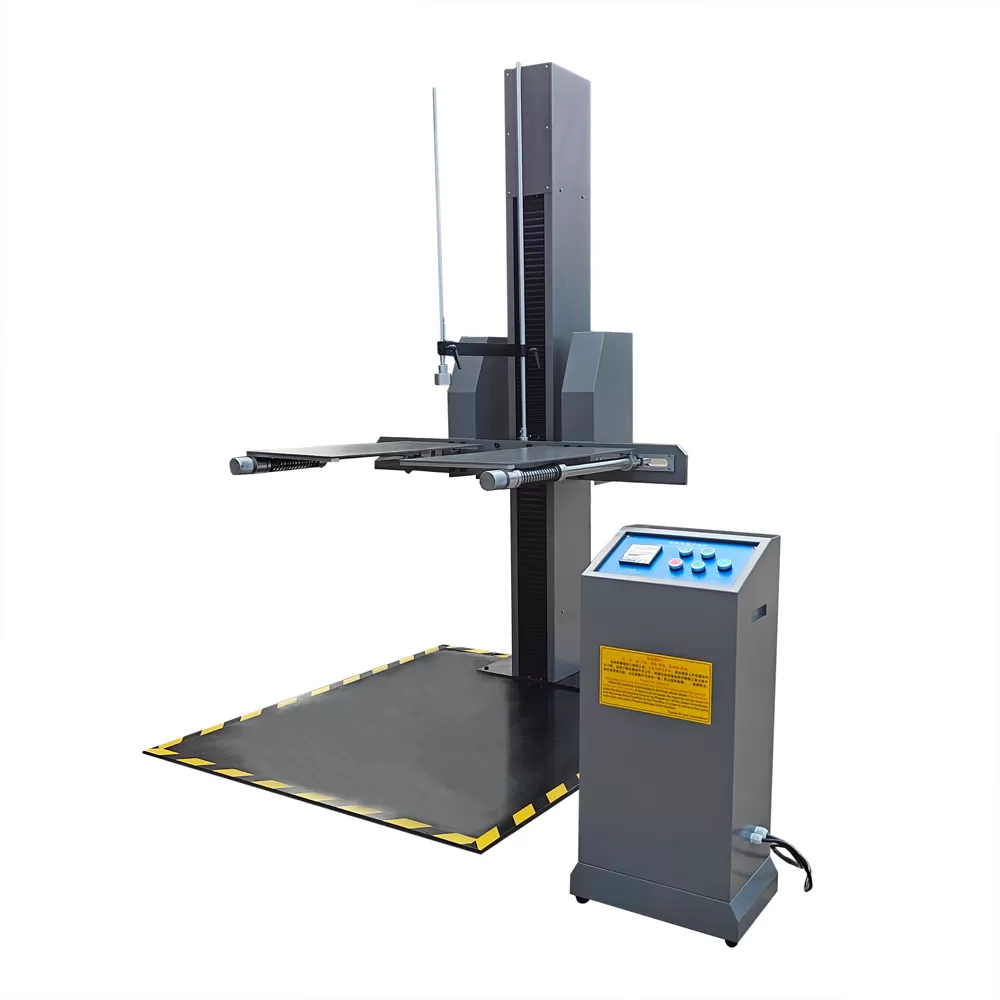

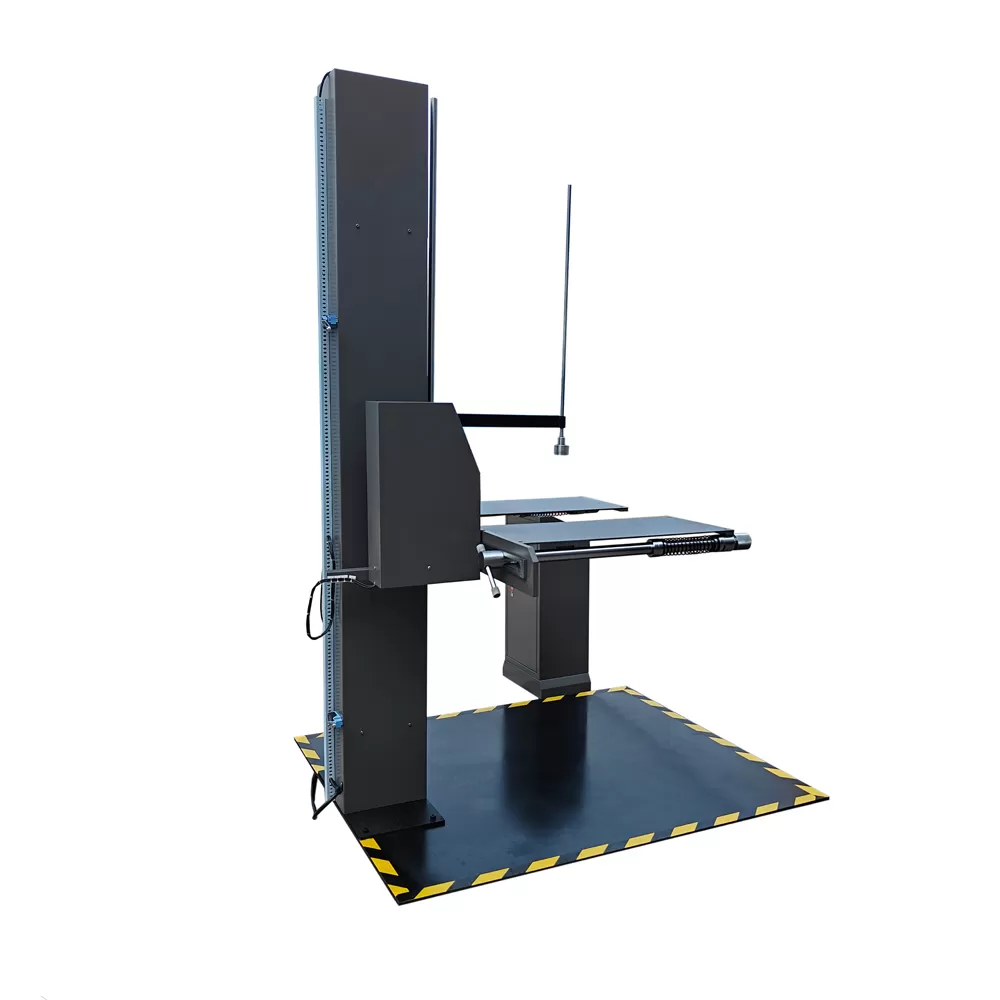

Double-arn drop tester
Key Features
Model: HE-DL-415D/HE-DL-420D
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Double-arm drop tester is designed to simulate accidental drop impacts during product handling, loading & unloading, logistics transportation and daily use. They can complete surface, edge and corner free drop tests for products and outer packages.
Application:
• Large home appliances:
TV, refrigerator, washing machine, air conditioner and complete appliance packages
• Medical & industrial equipment:
medical instruments, industrial control equipment, precision optical devices
• Auto parts:
vehicle central control, power battery packs and large plastic structural parts
• Large logistics packages:
furniture parts, hardware tool boxes, large turnover boxes for export
Specifications:
| Model | HE-DL-415D | HE-DL-420D |
|---|---|---|
| Effective test area | 400~1500mm, adjustable | 400~2000mm, adjustable |
| Test way | Faces, Edges, Angle all-round drop | |
| Test load | 0~80KG or customized | |
| Maximum specimen size | W1000 × D1000 × H800mm | |
| Bracket arm size | 700 ×350 mm (one side) | |
| Drop base plate size | W1200× D1400× H10mm (solid iron plate) | |
| Control mode | Electric falling, manual reset | |
| Machine size | W1200× D1400× H2080mm | W1200× D1400× H2580mm |
| Machine weight | About 320KG | About 350KG |
| Power supply | AC 380V 50HZ | |
Features:
• The machine can do face, angle and edge for free drop test of the package
• Equip with digital display height display displayer, and use the encoder for drop height tracking, which can accurately give the products drop height
• This machine adopts double arm structure with manual reset, electric control fall and electric lifting device, easy to use
• Unique buffer device greatly improves the machine service life, stability and security
• Single arm setting, can place products conveniently, drop Angle impact surface and the base plate plane Angle error is less than or equal to 5º
• Base plate has enough weight and loading area can reach to 2 m height with 100 kg load, when the equipment do the test, do not tilt, do not shake, make the package fall free
