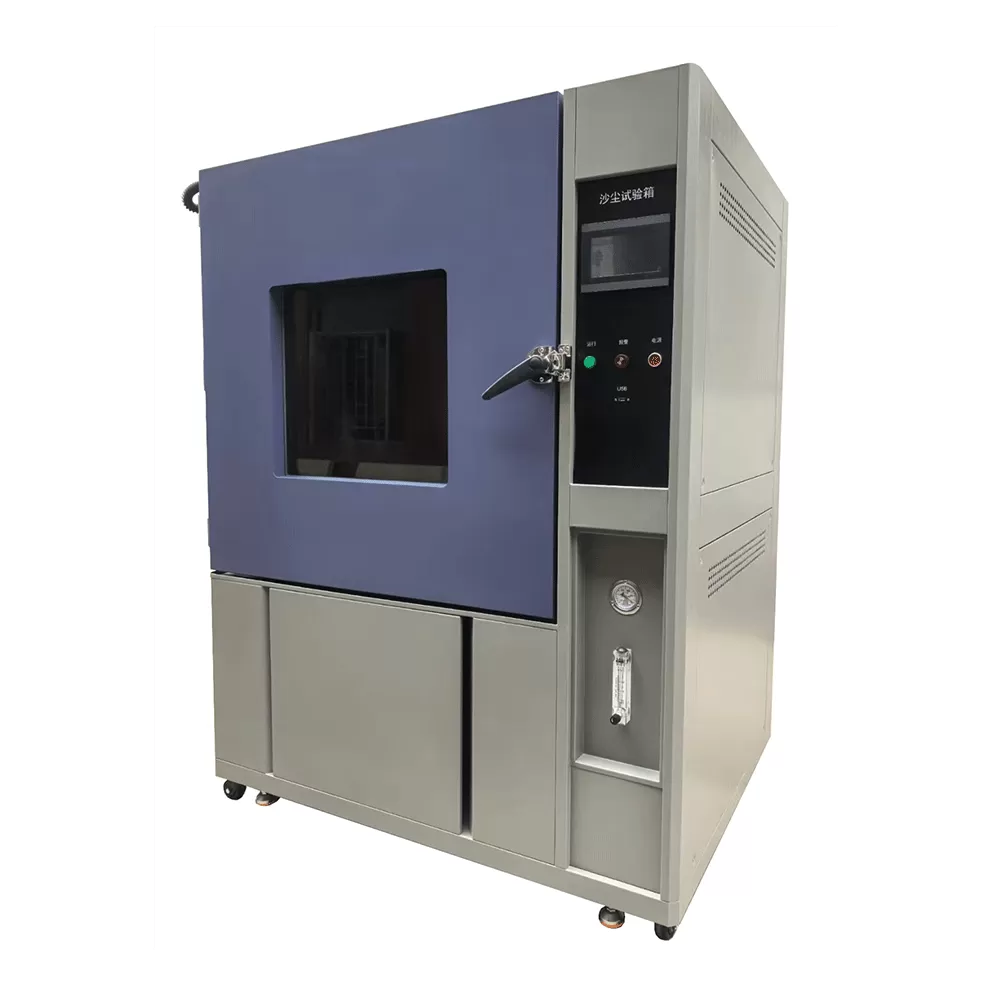

Dust-proof Test Chamber
Key Features
Model: HE-SC-800/HE-SC-1000
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
The dust-proof test chamber (also known as the sand and dust test chamber) is a professional environmental testing equipment used to simulate the natural dust and sandstorm working conditions. This equipment is mainly used to verify the sealing structure and shell protection performance of products, and to test whether equipment fails due to dust intrusion, such as short circuit, jamming, corrosion, deterioration of light transmission, and wear of parts, to determine the IP5X and IP6X dust-proof protection grades of the products. It is an essential environmental testing equipment for the manufacturing, research and development, and third-party testing of electronics, auto parts, and outdoor equipment.
Application:
● Electronics and Electrical Industry
Mobile phones, tablets, cameras, surveillance cameras, walkie-talkies, power banks, chargers, switches and sockets, relays, sensors, industrial control instruments, lithium batteries, server enclosures, LED displays, lighting fixtures.
● Automotive Components Industry
Vehicle cameras, headlights, dashboards, vehicle radars, charging stations, vehicle wiring harnesses, motors, wiper motors, new energy battery packs, charging guns, vehicle-specific sensors.
● Outdoor Security and Communication
Outdoor base stations, optical modules, walkie-talkies, access control equipment, gates, outdoor switches, security cameras, infrared thermometers, explosion-proof equipment.
● Hardware Tools and Construction Machinery
Hand drills, angle grinders, cutting machines, excavator instruments, construction machinery controllers, outdoor valves, bearing components.
● Medical Devices and Instrumentation
Outdoor detection instruments, industrial endoscopes, portable medical equipment, optical lenses, precision measuring equipment.
● Military, Rail Transit, New Energy
Military handheld devices, train control cabinets, wind power converters, energy storage equipment, photovoltaic inverters.
Specifications:
| Model | HE-SC-800 | HE-SC-1000 |
|---|---|---|
| Volume | 512L | 1000L |
| Internal dimension | W800×D800×H800mm | W1000×D1000×H1000mm |
| External dimension | W1300×D1000×H1660mm | W1500×D1200×H1860mm |
| Nominal wire diameter of mesh | 50 μm | |
| Nominal spacing between mesh | no more than 70 μm | |
| Dust consumption inside the box | 2 Kg/m³ | |
| Airflow speed | ≤2m/s | |
| Power supply | AC 220V, 50HZ | |
Characteristics:
● Standard Dust Circulation System
Equipped with a dedicated talcum powder/silica sand circulation fan and dust recovery filtration device. The dust in the box is evenly suspended without local deposition. The dust concentration is stable and controllable, meeting the IP5/IP6 dust protection standards for sand and dust media.
● Enclosed Integrated Test Chamber
Thickened stainless steel inner liner, double-layer silicone sealing door, no dust leakage; Observation window equipped with wear-resistant and scratch-resistant tempered glass, with rain-sweeping cleaning structure, allowing full visibility during the entire test.
● Intelligent Programmable Control System
Touch PLC touch screen, capable of setting wind speed, test duration, dust stirring cycle, intermittent blowing mode; Programs can be segmented stored, with automatic timing, automatic shutdown, and fault alarm.
● Dust Recovery and Cleaning Structure
Bottom dust collection bin + multi-level filters, dust can be recycled and reused, reducing material consumption; Quick opening structure, convenient for cleaning residual dust in the box.
● Safety Protection Configuration
Overload protection, fan overheating protection, automatic shutdown upon opening, abnormal dust concentration alarm, preventing dust leakage and contamination of the workshop.
● Compliance Standard Matching
The entire machine complies with IP dust protection grade test standards such as GB/T 4208, IEC 60529, ISO 16232, and DIN 40050.
