Edge And Ring Crush Tester

Description:

Edge And Ring Crush Tester is used in conjunction with a variety of materials for all-round testing. They can test various samples, including paper, corrugated cardboard, pipes, plastics and other materials. Different special sample racks are used to test different samples. The use of high-precision load cells can enhance the accuracy of tests, even under relatively small force values. These include five types of tests: ring crush (RCT), flat crush (FCT), edge crush (ECT), adhesion (PAT), and general compression (CMT). It is a testing device that integrates multiple functions.

Application:

• Paper Manufacturing Industry:

Liner board factory, corrugated base paper factory, special cardboard production plant for paper strength grading and raw material performance detection.

• Packaging Industry:

Corrugated cardboard factory, carton factory, color printing packaging enterprise, e-commerce logistics packaging supplier, food/home appliance packaging manufacturer.

• Downstream Manufacturing Enterprises:

Home appliances, food & beverage, auto parts, ceramic and other industries with independent packaging workshops to inspect purchased carton quality.

• Third-party Testing Institutions & Laboratories:

Packaging material testing center, light industry research institute, university packaging engineering laboratory for teaching and scientific research testing.

• Other Paper Products Industries:

Compression resistance test of paper angle protector, honeycomb paperboard, paper tray and industrial paper tubes.

Specifications:

Features:

• High-precision Force Measuring System:

Adopts high-sensitivity pressure sensor with ultra-high resolution, which can capture tiny force changes accurately and ensure consistent test data.

• Intelligent Touch Control:

touch screen with Chinese/English bilingual switching; the system automatically records test data, calculates strength value, average value and standard deviation without manual calculation.

• Constant-speed Servo Drive:

Servo motor matched with high-precision ball screw realizes stable and constant test speed, eliminates manual operation errors and improves test repeatability greatly.

• Multi-function & Modular Fixtures:

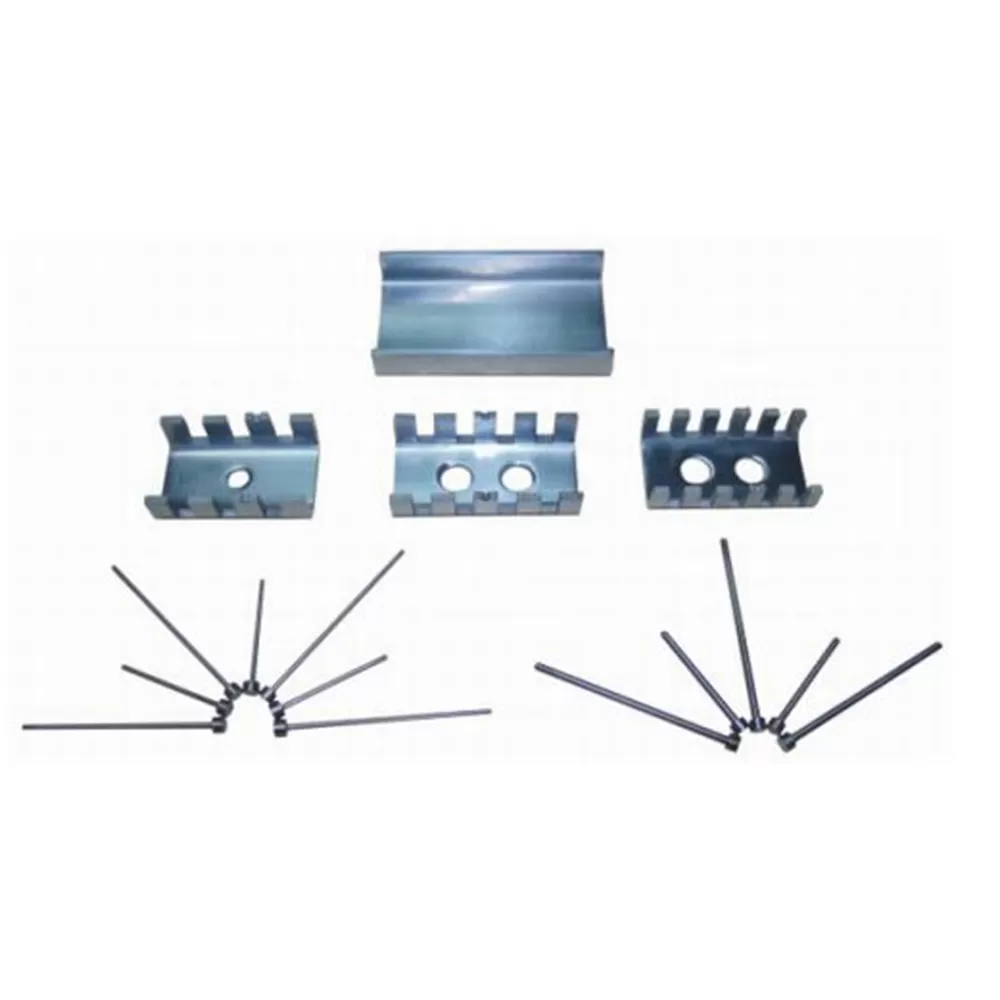

Standard equipped with ECT and RCT fixtures; optional auxiliary fixtures support multiple compression tests, realizing one machine for multiple uses.

• Complete Data Output Function:

Built-in large-capacity storage for batch test records; supports U disk data export, on-site report printing and computer data connection for centralized analysis.

• Sturdy & Durable Body Structure:

Thickened steel plate frame ensures high parallelism of upper and lower pressure plates; no deformation after long-term continuous operation.

• Full Safety Protection:

Overload protection, upper and lower limit anti-collision function to protect sensor and machine body; simple operation, no professional training required.

Test items:

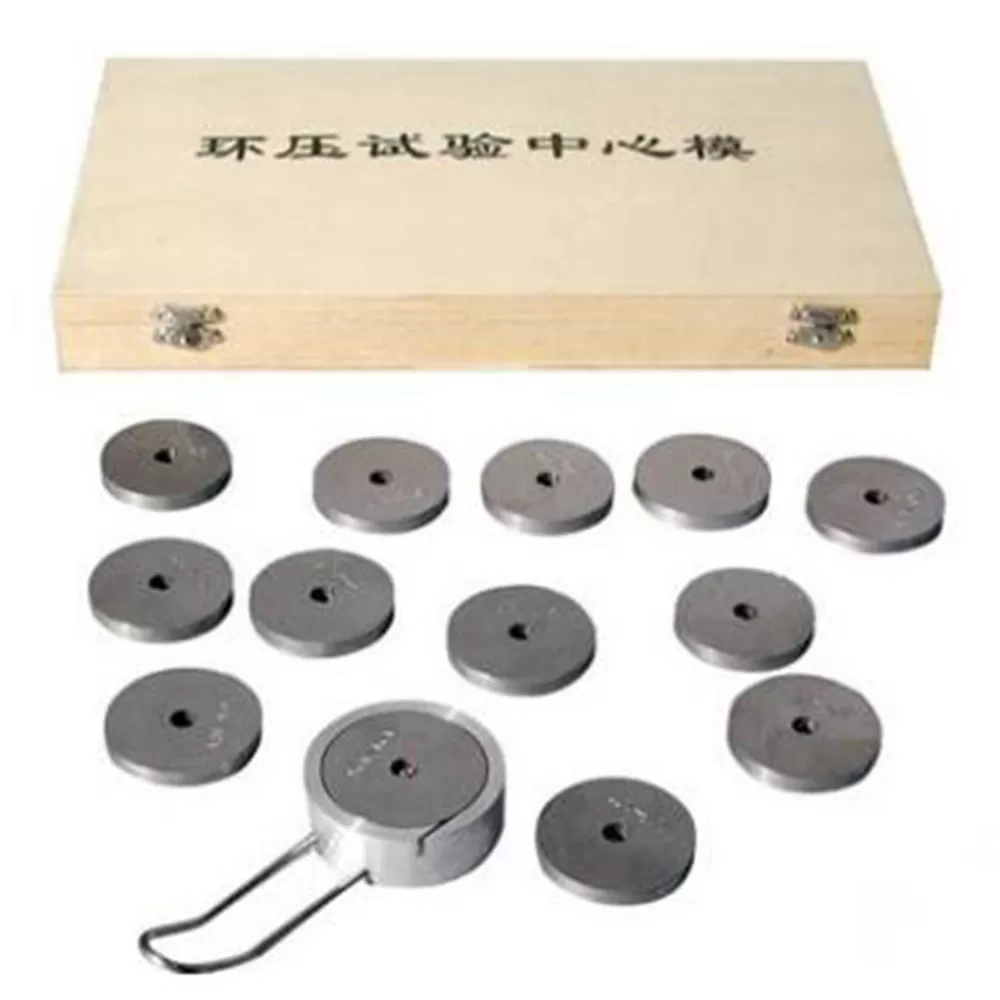

1. Equipped with a ring crush test center disk and a dedicated ring crush sampler, it conducts ring crush strength tests (RCT) on cardboard.

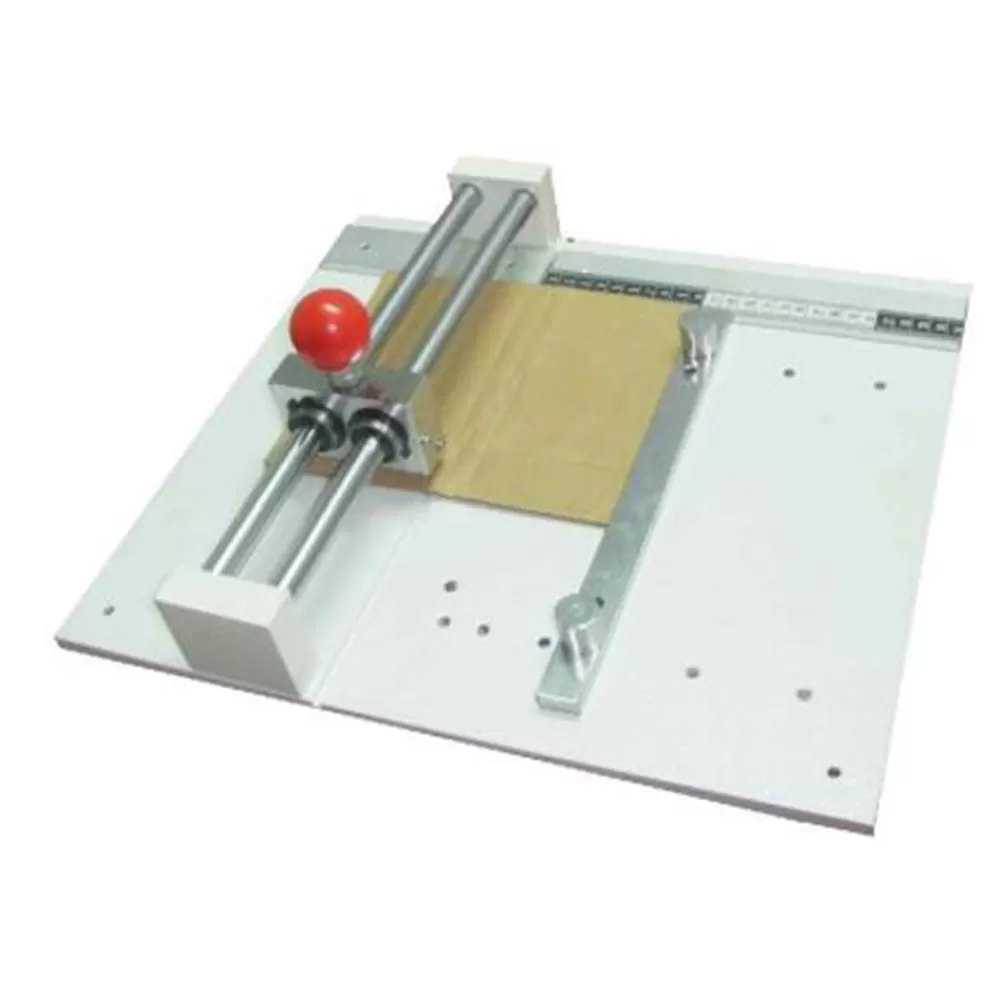

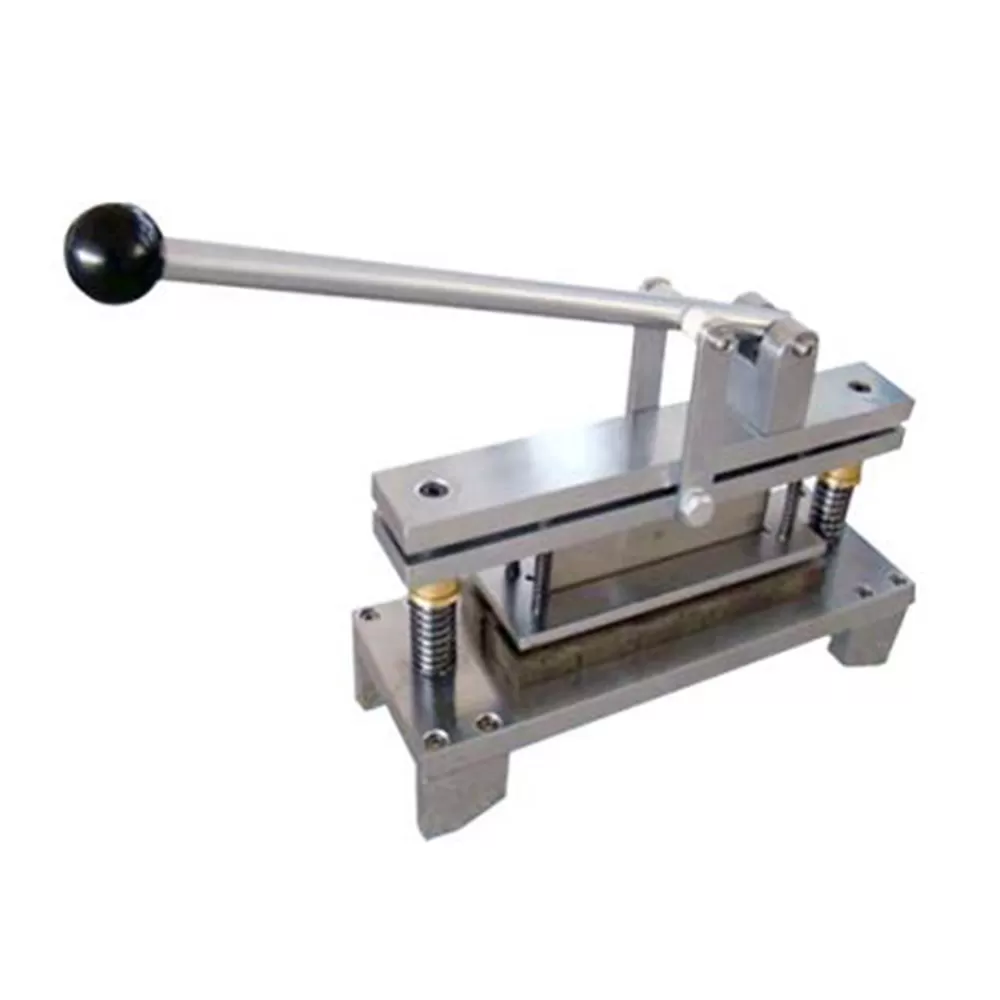

2. Equipped with an edge crush (adhesive) sample sampler and auxiliary guide blocks, it conducts edge crush strength tests (ECT) on corrugated cardboard.

3. Equipped with a peel strength test stand, it conducts corrugated cardboard adhesive (peel) strength tests (PAT).

4. Equipped with a flat pressure sample sampler, it conducts flat pressure strength tests (FCT) on corrugated cardboard.

5. Equipped with a groove gauge and auxiliary tools, conduct laboratory groove tests (CCT and CMT).
