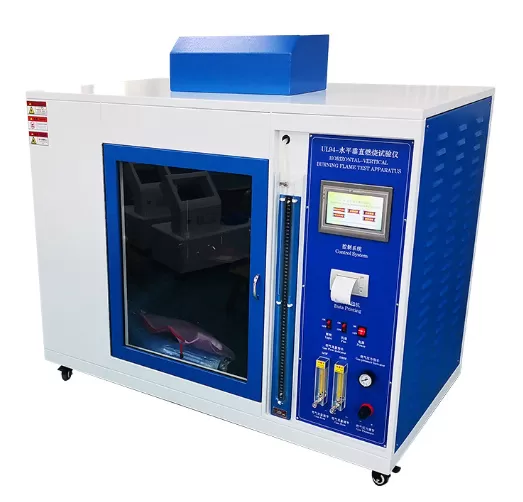

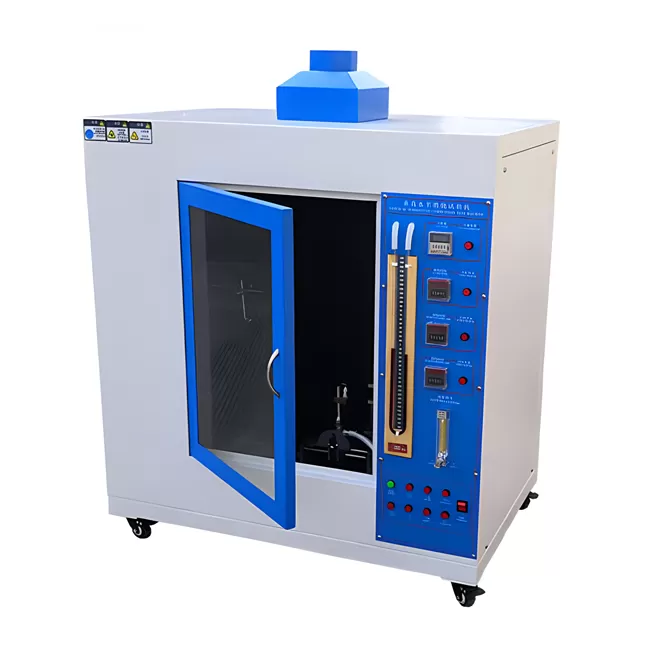

Flammability Test Equipment

Description:

Flammability Test Equipment is strictly developed in accordance with domestic and international standards such as GB/T 2408, GB/T 5169, UL94, and IEC 60695. It can simultaneously conduct horizontal and vertical combustion tests. Through standard open flame burning tests on non-metallic samples, it accurately measures the material's burning rate, residual flame time, and afterglow time, observes the ignition of molten droplets, determines the material's HB, V0/V1/V2, 5VA/5VB flame retardant grades, and intuitively assesses the material's risk of flame spread, self-extinguishing, and secondary ignition. It is widely used in raw material incoming inspection, product outgoing quality inspection, new material formula research and development, and third-party fire protection certification testing.

Application:

It is widely applicable to industries such as electronics and electrical appliances, plastic and chemical products, wires and cables, automotive and rail transportation, photovoltaic new energy, building materials and decoration, toys and daily-use plastic products, etc. At the same time, it can meet the flame retardant performance testing requirements of university material laboratories, third-party testing institutions, and enterprise quality inspection laboratories. The products are also suitable for domestic safety regulations testing and overseas UL export certification.

Specifications:

Characteristics:

• 2-in-1 Integrated Design:

Supports both horizontal and vertical burning tests without extra equipment; compatible with 50W small flame for V-grade test and 500W high-power flame for 5VA/5VB heavy-duty burning test, covering all UL94 grade tests.

• High-precision Flame Control System:

Equipped with standard Bunsen burner, precision gas flowmeter and pressure gauge to keep stable flame height without fluctuation. The timing accuracy reaches ±0.01s, ensuring highly repeatable and reliable test data.

• Intelligent Automatic Operation:

Adopts touch screen control panel with automatic ignition, automatic timing and electric burner lifting. Whole testing process requires minimal manual operation to avoid human errors.

• Safe & Corrosion-resistant Structure:

Full stainless steel test chamber resists corrosion from harmful burning smoke; double-layer tempered explosion-proof observation window for safe viewing. Equipped with independent exhaust port for timely smoke emission.

• Multi-safety Protection System:

Built-in gas leakage alarm, over-temperature protection and emergency stop button to prevent fire risks during testing. Absorbent cotton tray is equipped to check dripping ignition phenomenon.

• Adjustable Specimen Fixture:

Flexible clamping structure fits various samples such as plastic sheets, thin films, foam and strip samples.
