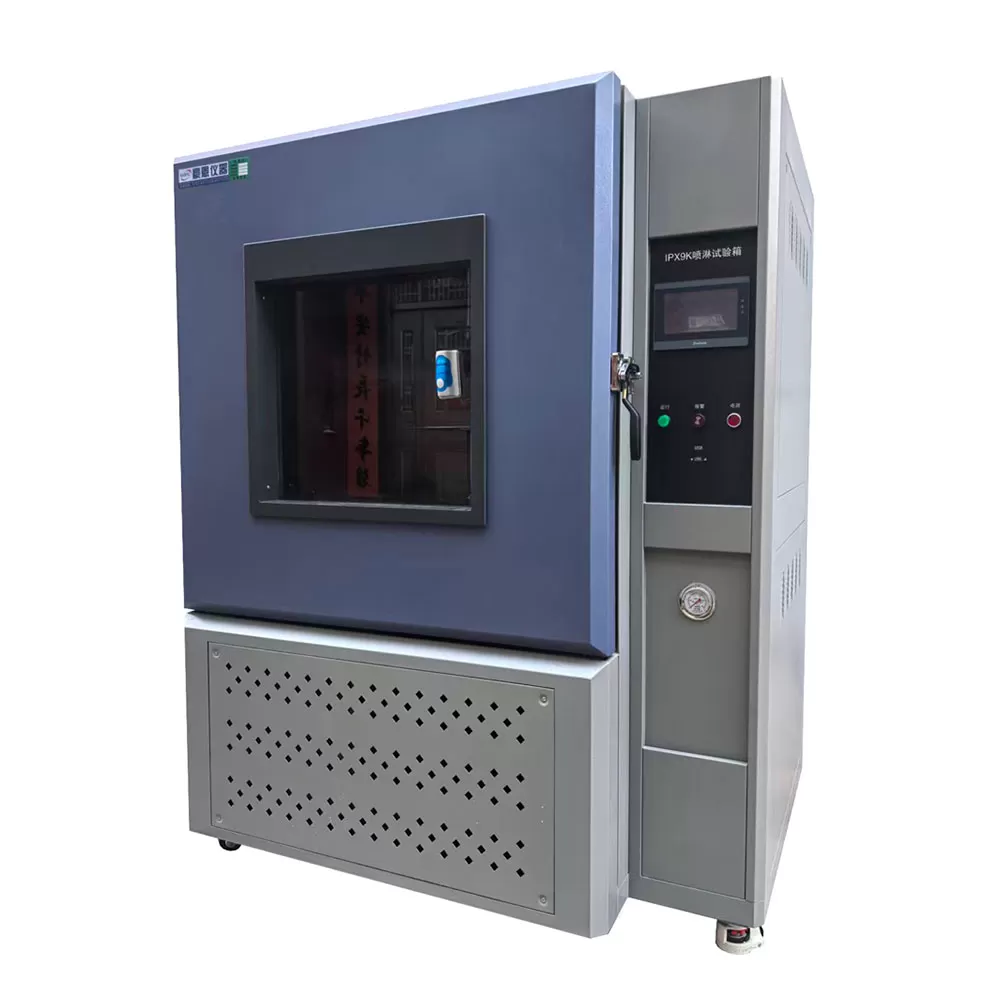

IPX9K rain test chamber
Key Features
Model: HE-LY9-1000
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Rain test chamber simulates natural rainfall, water splashing, strong spray, high-pressure washing and immersion environments. It is used to verify product waterproof performance, sealing reliability and electrical safety. It supports full IP waterproof rating testing for R&D validation, factory quality control and third-party certification.
Application:
● Electronics and Electrical Appliance Industry
Mobile phones, tablets, Bluetooth headphones, smart watches, cameras, charging ports, power adapters, routers, display screens, industrial control motherboards, sensors, lithium battery modules.
● Automotive Components
Headlights, vehicle-mounted cameras, wiring connectors, reversing radars, central control units, new energy battery packs, charging guns, vehicle-specific controllers, door handles.
● Security Lighting
Outdoor surveillance cameras, LED street lights, garden lights, explosion-proof lamps, access control equipment, alarm detectors, outdoor displays.
● Hardware, Machinery and Outdoor Equipment
Outdoor water pumps, motors, switches and sockets, water meters, gas meters, communication base station equipment, outdoor distribution boxes, circuit breakers.
● Military, Instruments and Medical
Handheld detectors, outdoor medical equipment, military portable equipment, precision measuring instruments, handheld walkie-talkies.
● Household Appliances and Kitchenware
Washing machines, water heaters, kitchen small appliances, bathroom smart toilets, outdoor sweeping robots.
Specifications:
| Model | HE-LY9-1000 |
|---|---|
| Capacity | 1000L |
| Internal dimension | W1000×D1000×H1000mm |
| External dimension | W1620xD1200xH1950mm |
| Water spray temperature | 80℃±5℃ |
| Water spray flow rate | 14～16 L/min |
| Water spray distance | 100～150 mm |
| Water spray pressure | 80～100bar (8000～10000Kpa) |

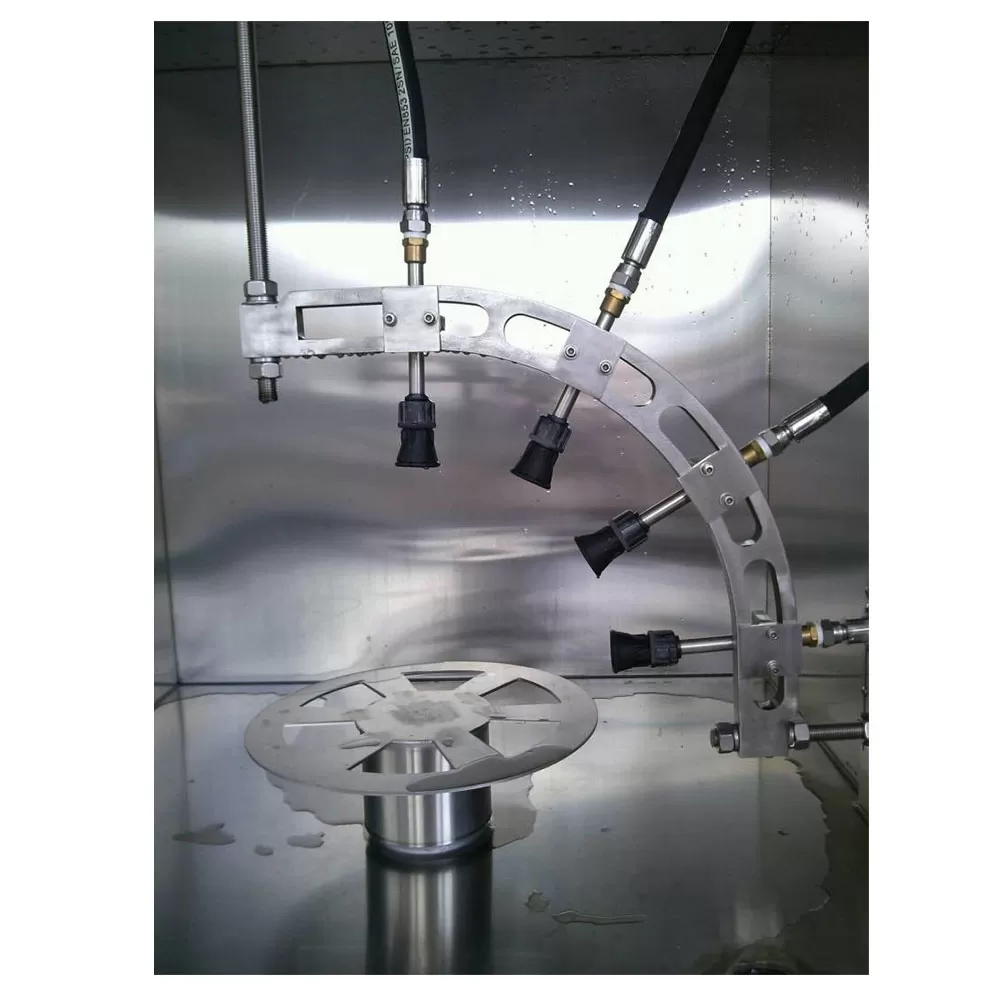

| Water spray angle and time | 0°, 30°, 60°, 90° Spray for 30 seconds at each angle |
| Turntable diameter | 400mm |
| Test sample maximum size | 350*350*350mm |
| Turntable load-bearing capacity | 20kg |
| Nozzle | 4 pieces, made of 304 material |
| Nozzle diameter | 1.6mm |
| Turntable rotation speed | 1-7r/min |
| Power supply | AC 380V 50HZ |
Characteristics:
Integrates IPX3/4 swing tube rain, IPX5/6 strong water spray, IPX7/8 immersion and IPX9K high-temperature high-pressure wash test in one unit.
● Precise & Stable Control:
Adjustable water pressure, flow rate, spray angle, rotation speed and test time with real-time monitoring, ensuring repeatable and accurate test results.
● Heavy-duty Stainless Steel Structure:
304 stainless steel body with double silicone door sealing, anti-corrosion, leak-proof and long service life.
● Smart PLC Touch System:
Preset standard test programs, automatic operation, timing, alarm and data storage, easy for batch testing.
● Circulating Water System:
Equipped with filtration and recycling device, greatly saves water and reduces operation cost.
● Safe & User-friendly:
Leakage protection, overload and water shortage protection to ensure safe operation.
● International Standard Compliance:
Fully meets IEC 60529, GB/T 4208, ISO 16232 and DIN 40050 standards.
