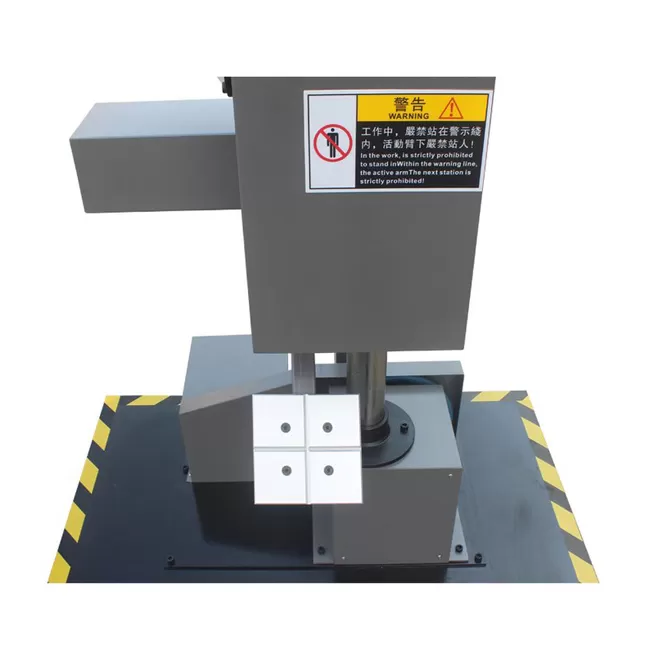

Single-arm drop tester
Key Features
Model: HE-DL-315S/HE-DL-320S
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Single-arm drop tester is designed to simulate accidental drop impacts during product handling, loading & unloading, logistics transportation and daily use. They can complete surface, edge and corner free drop tests for products and outer packages.
Application:
• Packaging industry:
Corrugated carton factories, honeycomb board manufacturers, paper
• Consumer electronics:
mobile phones, tablets, earphones, smart watches, power banks, speakers and small electronic accessories
• Small household appliances:
hair dryers, electric shavers, portable juicers, desk lamps and humidifiers
• Toys & stationery:
plastic toys, blind boxes, model crafts and gift boxes
• E-commerce small packages:
cosmetic boxes, small express cartons
Laboratory quality inspection:
small factory QC workshops and R&D laboratories
Specifications:
| Model | HE-DL-315S | HE-DL-320S |
|---|---|---|
| Effective test area | 300~1500mm, adjustable | 300~2000mm, adjustable |
| Test way | Faces, Edges, Angle all-round drop | |
| Test load | 0~80KG or customized | |
| Maximum specimen size | W800 × D800 × H1000mm | |
| Bracket arm size | W180 × D160 mm | |
| Drop base plate size | W1200× D1700× H10mm (solid iron plate) | |
| Control mode | Electric drive | |
| Machine size | W1200× D1700× H2315mm | W1200× D1700× H2800mm |
| Machine weight | About 350KG | About 420KG |
| Power supply | AC 380V 50HZ | |
Features:
• The machine can do face, angle and edge for free drop test of the package
• Equip with digital display height display displayer, and use the encoder for drop height tracking, which can accurately give the products drop height

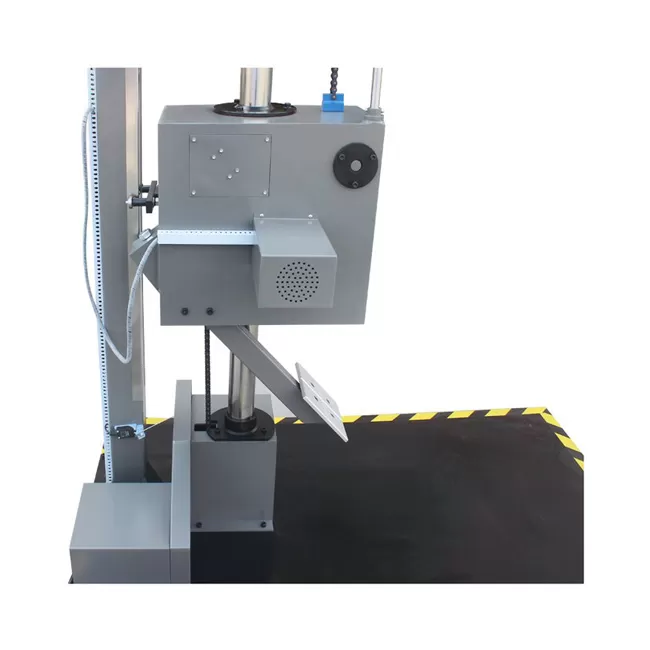

• This machine adopts single arm structure with manual reset, electric control fall and electric lifting device, easy to use
• Unique buffer device greatly improves the machine service life, stability and security
• Single arm setting, can place products conveniently, drop Angle impact surface and the base plate plane Angle error is less than or equal to 5º
• Base plate has enough weight and loading area can reach to 2 m height with 100 kg load, when the equipment do the test, do not tilt, do not shake, make the package fall free
