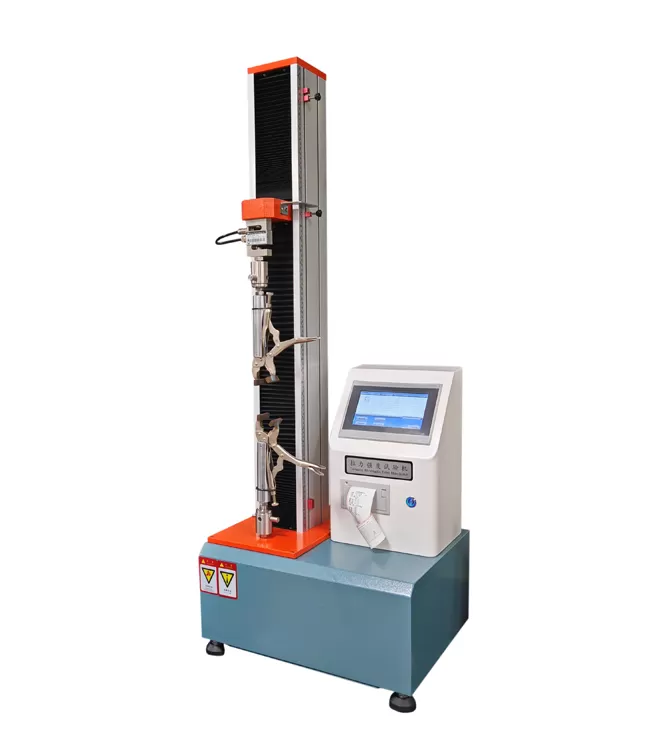

Tensile Testing Machine
Key Features
Model: HE-TS-20N/50N/100N/200N/500N/1KN/2KN
Price: FOB, CIF, DDP
Payment: T/T
Package: Each set packing with foam, stretch film, and strong wooden case
Delivery: In stock or 15 days after order
Product Spotlights
Supplier highlights: This supplier is a manufacturer , offers quality control, can perform full customization, design customization, and sample customization, and mainly sells to the UK, Germany, USA, and Japan.
Description:
Tensile testing machine (also called universal material testing machine) is professional mechanical testing equipment for material physical performance inspection. It conducts tensile, compression, bending, peeling, tearing, shearing and puncture tests for various raw materials and finished products.
It accurately detects core mechanical indicators including tensile strength, yield strength, elongation at break, compression deformation, bending resistance, peeling force and shear force. It supports incoming material inspection, finished product quality inspection, new material R&D and factory quality certification.
Application:
• Rubber & Plastics Industry:
Plastic sheets, silicone products, hoses, rubber parts, plastic films, profiles
• Packaging Industry:
Adhesive tapes, packaging films, cartons, sealing openings, composite materials, labels
• Textile & Non-woven Fabrics:
Garment fabrics, protective clothing, geomembrane, mask cloth, leather, safety belts
• Metal & Hardware Industry:
Steel wires, copper/aluminum wires, screws, hardware stamping parts, welding spots
• Wire & Cable Industry:
Cable conductors, insulating sleeves, wire sheaths
• New Energy Industry:
Lithium battery diaphragms, copper-aluminum foils, photovoltaic adhesive films
• Construction & Medical Industry:
Waterproof rolls, geomaterials, medical sutures, medical adhesive tapes
Specifications:
| Model | HE-TS-20N/50N/100N/200N/500N/1KN/2KN |
|---|---|
| Capacity | 20N, 50N, 100N, 200N, 500N, 1000N, 2000N |

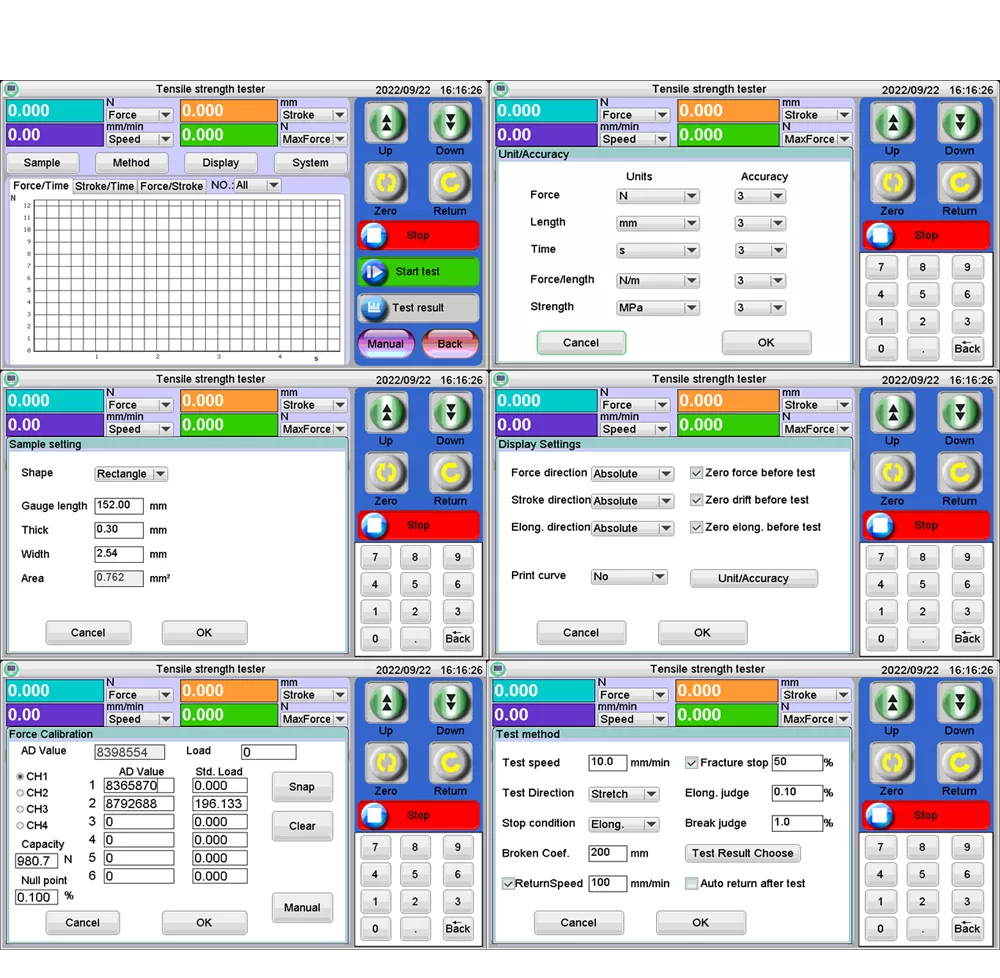

| Control mode | Touch screen display |
| Test speed range | 50 ~ 300mm/min, stepless speed regulation |
| Effective test width | 150mm |
| Effective stretching space | Maximum 500mm without fixture |
| Load sensor | American high-precision sensor |
| Motor | Taiwan AC variable frequency motor |
| Ball screw | Taiwan TBI ball screw |
| Machine size | W450×D500×H1400mm |
| Machine weight | About 60 KG |
| Power supply | AC 220V±10% 50HZ |
Characteristics:
● High Precision Sensor System:
Adopts high-accuracy load cell, force measurement accuracy up to 0.5 grade, micron-level displacement resolution, stable test data without drift.
● Multi-function Modular Fixture:
Replaceable fixtures support 10+ test modes on one machine, no need for extra testing equipment.
● Multi-safety Protection Design:
Overload protection, travel limit protection, emergency stop button to avoid equipment damage during sample fracture.
● Complete Data Export Function:
Support test report export in PDF/Excel format, convenient for quality record and customer audit.
