The Ultimate Guide to Rubber Testing Equipment: Types, Standards & Applications

Rubber compounds serve as the backbone of modern engineering. They seal aerospace fuel lines, absorb mechanical shocks in heavy vehicles, and insulate high-voltage electronics. However, an unverified rubber batch can trigger catastrophic failures, from hydraulic fluid leaks to fatal tire blowouts.

Precise material evaluation prevents these failures before parts leave the factory floor. Investing in dependable rubber testing equipment allows manufacturers to verify raw polymers, refine compounding recipes, and comply with strict international quality benchmarks.

For more than 13 years, HAOEN has engineered high-precision material testing instruments. Based in Dongguan, our technical team builds standard and customized testing systems that help laboratories and production plants worldwide maintain zero-defect standards.

1. Why Rubber Testing Is Critical in Modern Manufacturing

Rubber exhibits complex viscoelastic behavior. Unlike metals, its physical response changes dramatically under temperature swings, mechanical stress, and chemical exposure. Systematic testing protects your business across three core dimensions:

• Quality Control and Batch Consistency: Raw natural and synthetic polymers vary between supplier lots. Testing catches issues like poor filler dispersion, incorrect crosslink density, or premature scorch before mass molding begins.

• Regulatory and Safety Compliance: Mission-critical sectors like automotive, defense, and medical devices demand complete traceability. Component makers must prove compliance with global standards to avoid recalls and legal liability.

• R&D and Material Cost Optimization: Testing instruments help compounding engineers balance performance and cost. You can substitute expensive additives or recycle flash scrap without compromising tensile integrity or elasticity.

2. Core Types of Rubber Testing Equipment

Evaluating an elastomer requires diverse testing methods, covering mechanical strength, vulcanization dynamics, friction wear, and accelerated environmental aging. Below are the primary testing instruments used across modern rubber laboratories.

2.1 Mechanical & Tensile Testing Equipment

Universal tensile testing machines measure how rubber stretches, deforms, and breaks under direct axial load. Because rubber can elongate several hundred percent before failure, these machines require extended crosshead travel and specialized non-contact optical or long-travel extensometers.

• Primary Test Parameters: Tensile strength at break, yield strength, modulus at specific elongation (e.g., 100%, 300%), tear resistance, and puncture resistance.

• HAOEN Recommendation: Dual-column and single-column universal material testing systems fitted with pneumatic non-slip grips to prevent sample slippage during rapid extension.

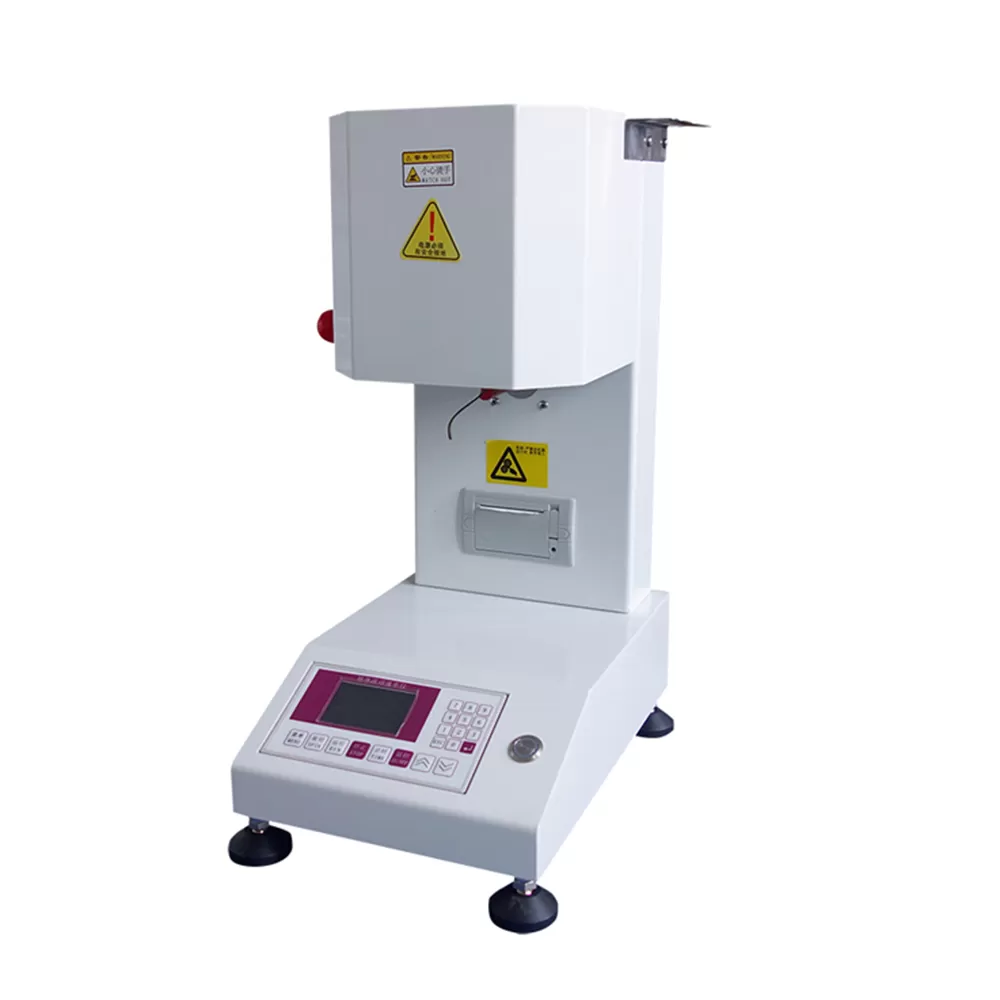

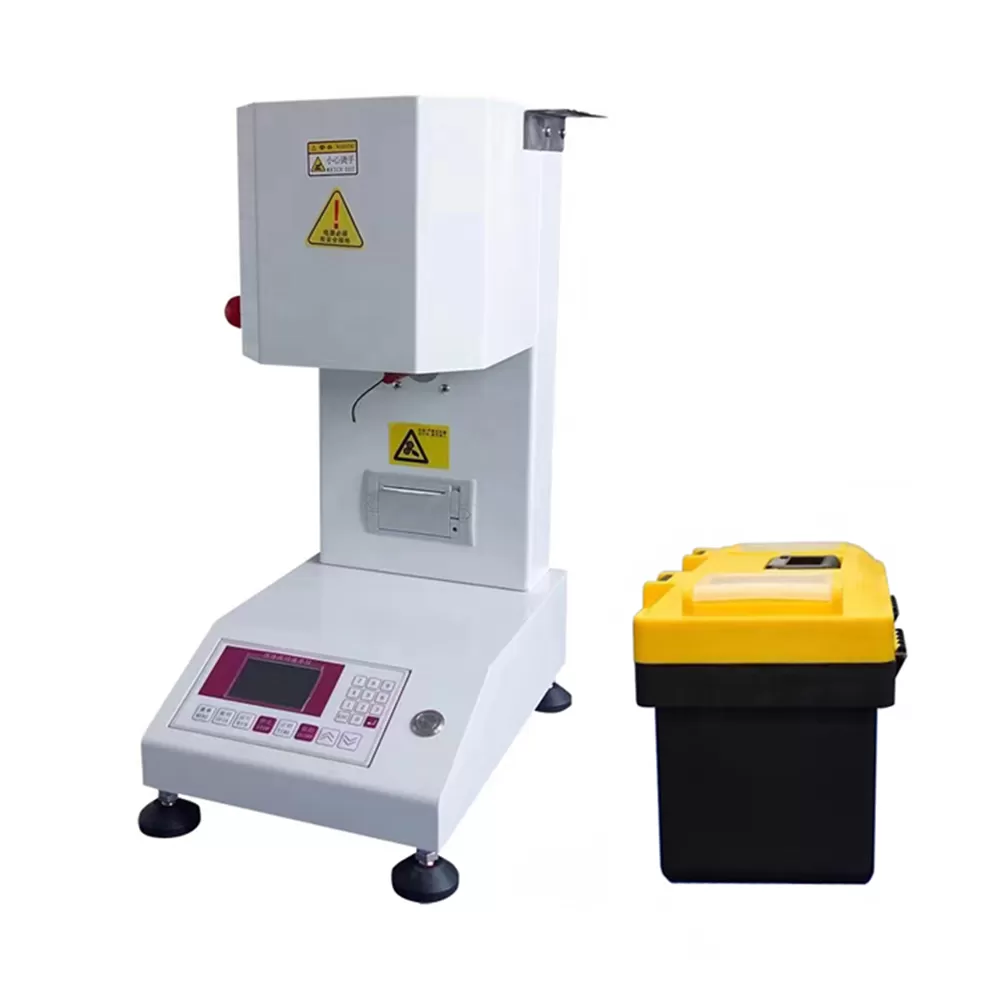

2.2 Rheological & Vulcanization Testing Equipment

Rheology tools analyze how uncured rubber flows inside molds and how quickly it crosslinks under heat and pressure. These units prevent molding defects such as short shots, air traps, and uneven curing.

• Mooney Viscometer: Measures pre-cure viscosity, scorch safety time, and stress relaxation rates of raw elastomeric polymers under controlled shear.

• Moving Die Rheometer (MDR): Tracks the entire vulcanization profile without a rotor. It delivers crucial data points including minimum torque ($M_L$), maximum torque ($M_H$), scorch time ($ts_1$, $ts_2$), and optimum cure time ($tc_{90}$).

2.3 Abrasion & Wear Testing Equipment

Frictional wear degrades dynamic rubber components over time. Abrasion testers simulate sliding friction under specific contact loads, measuring volume loss to predict field life.

• DIN Abrasion Tester: Evaluates abrasive wear by pressing a cylindrical rubber specimen against an emery-cloth-covered rotating drum under set contact forces.

• Akron Abrasion Tester: Ideal for testing tire treads, shoe soles, and conveyor belting by running a rubber wheel against an abrasive wheel at a fixed slip angle.

2.4 Hardness & Flexibility Testers

Hardness dictates a seal's sealing force, while resilience determines its energy absorption characteristics.

• Shore Durometers: Shore A durometers measure standard soft-to-medium vulcanized rubbers, while Shore D units measure harder elastomers and ebonite.

• Rebound Resilience Testers: Measure the elastic energy returned after a weighted pendulum or steel ball strikes the rubber surface.

• De Mattia Flexing Testers: Subject notched or un-notched test strips to continuous cyclic bending to evaluate crack growth resistance.

2.5 Environmental & Aging Simulation Equipment

Sunlight, atmospheric ozone, and high temperatures break down unsaturated polymer backbones, causing surface cracking and embrittlement.

• Ozone Aging Test Chambers: Expose statically or dynamically strained specimens to controlled ozone concentrations, temperatures, and relative humidity.

• Thermal Aging Ovens: Subject test pieces to forced-air high temperatures to evaluate the drop in tensile properties over defined exposure periods.

3. Key International Testing Standards for Rubber

Quality inspection requires strict adherence to standardized test protocols. Operating your rubber testing equipment according to recognized international standards guarantees that test data from different labs matches directly.

• ASTM D412 / ISO 37: The primary international standard for determining the tensile properties of vulcanized thermoset rubbers and thermoplastic elastomers using dumbbell-shaped specimens.

• ASTM D5963 / ISO 4649: Defines the standard test method for rubber property abrasion resistance using the rotating drum method (DIN abrasion).

• ASTM D1646 / ISO 289: Outlines procedures for measuring the viscosity, scorch characteristics, and stress relaxation of unvulcanized rubber with a shearing disk viscometer.

• ASTM D2240 / ISO 868: Specifies the indentation hardness testing process for elastomeric materials using calibrated durometers.

• ASTM D1149 / ISO 1431: Details dynamic and static surface cracking examination when rubber samples operate in an ozone-rich environment.

4. Industry Applications of Rubber Testing Equipment

Different industries subject rubber components to vastly different mechanical and environmental stresses. Proper lab machinery bridges the gap between raw formulas and real-world durability.

Automotive Manufacturing: Modern vehicles rely on hundreds of elastomeric components. Tires require DIN abrasion testing and dynamic fatigue tracking. Suspension bushings demand cyclic dynamic stiffness tests, while engine bay hoses require high-temperature oil immersion and ozone resistance testing.

Aerospace & Defense: Aircraft hydraulic O-rings and cabin seals operate under low temperatures at high altitudes and intense heat near turbine engines. Laboratories evaluate compression set, low-temperature retraction (TR-10), and fluid compatibility.

Footwear & Consumer Goods: Outsoles for athletic shoes must resist continuous flexing and abrasion without delaminating or splitting. Quality teams use De Mattia flex testers, Akron abrasion units, and Shore durometers to balance grip with longevity.

Industrial Seals, Gaskets & Hoses: Heavy equipment gaskets must maintain constant contact pressure over years of service. Compression set fixtures and Mooney viscometers ensure that compounds flow evenly during transfer molding and retain their sealing recovery over time.

Electronics & Medical Devices: Cleanroom medical tubing and silicone gaskets require precise tensile micro-testing, puncture resistance checks, and biocompatible material aging tests.

5. Why Choose HAOEN as Your Rubber Testing Equipment Manufacturer?

Selecting the right instrumentation partner is just as critical as choosing the testing method itself. HAOEN brings technical engineering strength and field-tested reliability to your laboratory operations.

13+ Years of Manufacturing Expertise: Established in 2013 in Dongguan, HAOEN operates as a certified National High-Tech Enterprise. We design, machine, and calibrate our test equipment in-house, keeping full control over mechanical tolerances and electronic assembly.

Turnkey Lab Solutions: We do not just sell standalone machines. HAOEN supplies complete testing setups, from tensile machines and sample die cutters to precision curing rheometers and aging ovens. This integrated approach simplifies operator training and data collection.

Precision Engineering & Customization: Standard catalog units do not always fit unique testing geometries. Our R&D engineering team designs custom specimen grips, specialized environmental chambers, and tailored software modules to match your exact testing protocols.

Global Technical Support: Testing downtime halts factory output. HAOEN provides worldwide technical assistance, professional calibration support, clear documentation, and rapid spare parts dispatch to keep your quality operations running smoothly.

6. Frequently Asked Questions

Q1: How do I choose the right capacity for a rubber tensile testing machine?
A1: Because pure rubber elongates significantly before failure, you do not always need high-capacity load cells. A 2.5 kN to 5 kN load capacity handles most standard ASTM D412 dumbbell specimens. However, you must choose a machine frame with enough vertical clearance (often 800 mm to 1200 mm of crosshead travel) and install long-travel optical or clip-on extensometers to track extreme elongation accurately.

Q2: What is the main operational difference between a Mooney Viscometer and a Moving Die Rheometer (MDR)?
A2: A Mooney Viscometer evaluates the viscosity and processing safety (scorch time) of uncured raw rubber compounds before molding. A Moving Die Rheometer (MDR) measures the curing kinetics during the actual crosslinking reaction, delivering full vulcanization curves ($M_L$, $M_H$, $tc_{10}$, $tc_{90}$) under steady heat and pressure.

Q3: How often should our laboratory calibrate rubber testing equipment?
A3: Industry standards typically mandate annual calibration for primary measurement sensors, including load cells, displacement encoders, temperature probes, and torque transducers. Facilities running 24/7 production checks or strict aerospace programs often perform intermediate calibration verifications every six months using certified reference standards.

Q4: Can HAOEN testing equipment export raw test data to our company LIMS?
A4: Yes. HAOEN test software features flexible data management tools. You can export complete curves, statistical parameters, and pass/fail metrics directly to CSV, Excel, PDF, or through automated database scripts that connect directly to your Laboratory Information Management System (LIMS).

Q5: Can HAOEN provide custom sample preparation tools for rubber testing?
A5: Yes. Reliable test results begin with clean sample preparation. HAOEN supplies dedicated pneumatic and manual specimen cutting presses along with precision dies matching ASTM, ISO, DIN, and JIS geometry standards.
