Global demand for sustainable paper-based packaging continues to surge as companies replace single-use plastics. By 2026, international regulatory frameworks and strict retailer guidelines will require paper mills, box manufacturers, and packaging suppliers to meet higher performance benchmarks than ever before.
Inconsistent paper quality leads to compromised packaging strength, shipping damage, customer claims, and higher operating costs. Establishing a reliable quality control system is no longer optional. It is essential for protecting your bottom line and maintaining your market reputation.
To help you stay compliant and competitive, this guide outlines the top 10 essential paper testing instruments every quality control lab needs in 2026. Drawing on more than 13 years of specialized manufacturing experience, HAOEN provides factory-direct paper testing equipment engineered to deliver precise, repeatable results for modern packaging laboratories.
10 Essential Paper Testing Instruments for 2026
1. Paper Bursting Strength Tester
A paper bursting strength tester measures the maximum hydraulic pressure a paper or corrugated board sample can withstand before rupturing. The instrument applies pneumatic or hydraulic pressure through a rubber diaphragm against a clamped circular specimen.
Why It Is Essential for 2026:
As brands shift toward
lightweight paperboard to reduce shipping weight, bursting strength remains the
core indicator of structural resistance. It proves whether a corrugated
container can withstand internal pressure during transit without bursting
open.
HAOEN Advantage:
HAOEN paper bursting strength testers
feature high-precision pressure sensors, automated clamping mechanisms, and
one-touch digital operation. Built-in microprocessors calculate bursting index
automatically, eliminating manual calculation errors.
Meets TAPPI T810, TAPPI T807, and ISO 2758 standards.
Equipped with emergency safety stops and overload protection.
Includes direct data output for quality tracking systems.
2. Ring Crush and Edge Crush Tester (RCT/ECT)
The Ring Crush Test (RCT) and Edge Crush Test (ECT) machine evaluates the compressive resistance of raw paper strips (RCT) and corrugated board edges (ECT). It also performs Flat Crush Tests (FCT) and Pin Adhesion Tests (PAT) using interchangeable test fixtures.
Why It Is Essential for 2026:
Edge crush resistance
directly correlates with overall carton stacking capability. Knowing your exact
ECT value allows structural engineers to optimize paper weight without risking
box collapse during storage.
HAOEN Advantage:
HAOEN supplies multi-functional crush
testers featuring high-precision load cells and smooth servo-motor drives. The
system delivers exceptional linearity across wide force ranges.
Supports RCT, ECT, FCT, PAT, and CMT test modes on a single unit.
Real-time display of force-displacement curves.
Conforms to ISO 3037, ISO 12192, and TAPPI T818.

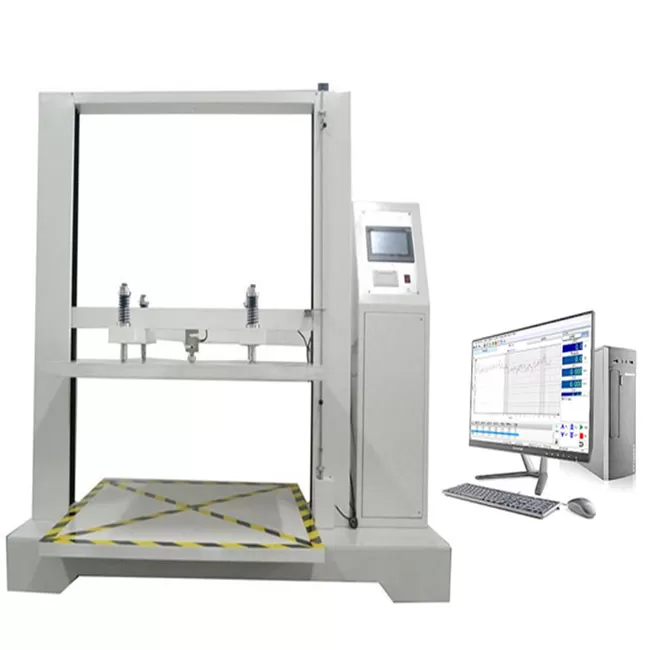

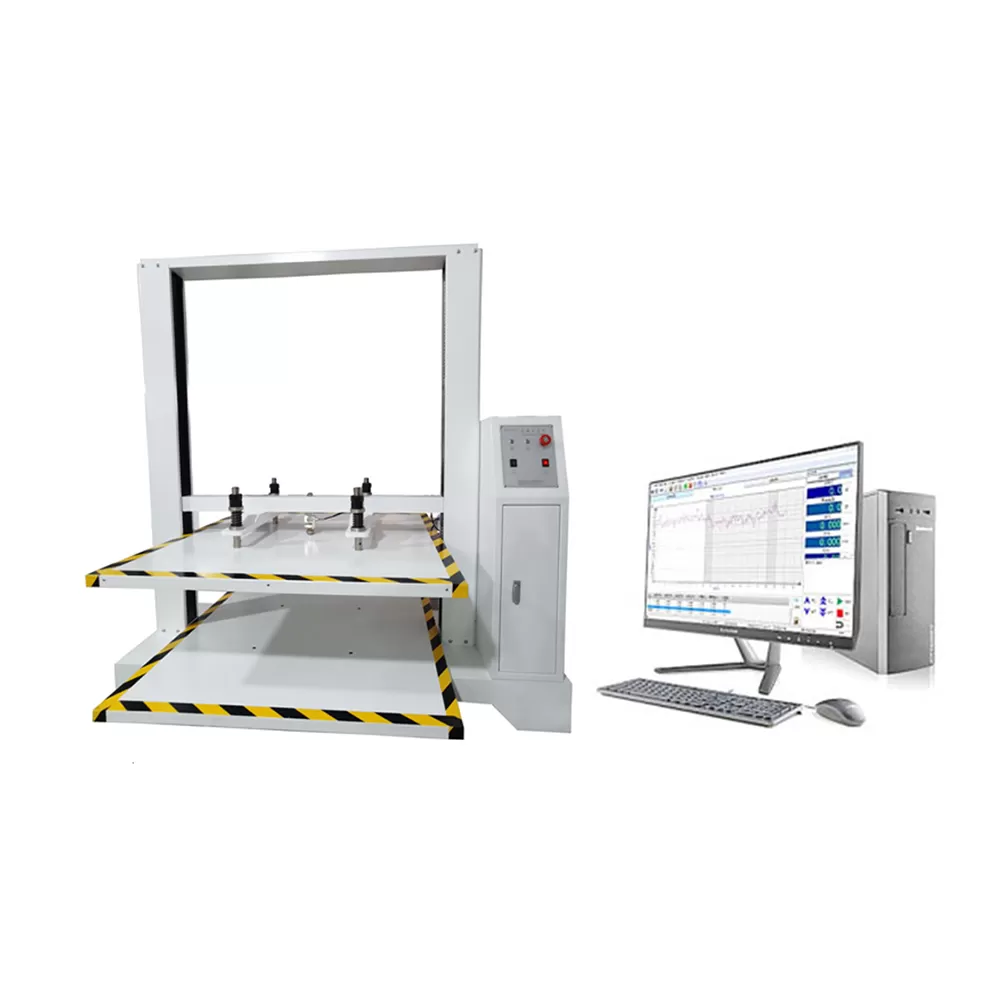

3. Box Compression Tester (BCT)
A Box Compression Tester subjects a fully assembled corrugated box to compressive force until failure occurs or a pre-set load limit is met. It measures peak compressive strength and deformation characteristics under static load conditions.
Why It Is Essential for 2026:
Modern warehouse automation
systems stack pallets higher to maximize vertical space. E-commerce logistics
demand that outer cartons maintain structural integrity under continuous load in
variable climate conditions.
HAOEN Advantage:
HAOEN box compression testing machinery
offers heavy-duty structural rigidity, ultra-precise ball screws, and
user-friendly control software capable of performing stack tests, load-holding
tests, and crush-to-failure tests.
Available in custom platen sizes up to 1.5 meters or larger.
Programmable holding force to simulate real-world storage duration.
Fully compliant with ASTM D642 and ISO 12048 standards.
4. Tensile Strength Tester (Universal Material Tester)
A paper tensile strength tester pulls a strip of paper at a constant rate of elongation until it breaks. It measures peak tensile force, tensile energy absorption (TEA), stretch percentage, and modulus of elasticity.
Why It Is Essential for 2026:
High-speed automated
converting machinery puts high stress on continuous paper webs. Paper with low
tensile strength or inadequate stretch properties snaps on production lines,
causing costly downtime.
HAOEN Advantage:
HAOEN universal tensile testing
equipment features modular pneumatic grips designed specifically to prevent
specimen slippage or jaw breaks during testing.
High-resolution load cell options tailored for delicate tissue up to heavy kraft linerboard.
Multi-language software interface with automated statistical reports.
Supports additional testing for flexible packaging materials, film, and adhesive tapes.
5. Elmendorf Tear Tester
The Elmendorf tear tester measures the force required to propagate a tear through a pre-cut slit in paper or paperboard using a falling pendulum mechanism.
Why It Is Essential for 2026:
Paper bags, heavy-duty
shipping sacks, and food wrapping materials require strong tear resistance to
prevent catastrophic tearing during handling and retail distribution.
HAOEN Advantage:
HAOEN offers digital Elmendorf tear
testers with electronic pendulum release systems and automated angle encoders
that eliminate manual reading errors.
Pneumatic specimen clamping ensures uniform hold pressure.
Quick-change pendulum weights accommodate multiple paper grades.
Fully compliant with ISO 1974 and TAPPI T414 standards.
6. Cobb Water Absorption Tester
The Cobb absorption tester measures the amount of water absorbed by a paper or paperboard surface within a specified time frame (typically 60 or 180 seconds). The value is expressed as grams of water absorbed per square meter ($g/m^2$).
Why It Is Essential for 2026:
Cold-chain packaging,
beverage carriers, and outdoor shipping containers must resist ambient moisture.
High Cobb values indicate inadequate sizing, leading to soft, weakened
corrugated walls in humid environments.
HAOEN Advantage:
HAOEN manufactures standardized Cobb
testers featuring heavy stainless-steel construction, precision hand rollers,
and quick-locking clamping rings engineered for high-volume lab use.
Corrosion-resistant materials ensure long service life.
Simple manual operation with repeatable test parameters.
Meets TAPPI T441 and ISO 535 standards.
7. Precision Digital Thickness Tester
A precision paper thickness tester (micrometer) measures the dead-weight thickness of paper or corrugated samples under standardized contact pressure and surface area conditions.
Why It Is Essential for 2026:
Variations in paper
thickness cause downstream printing defects, poor folding accuracy, and
inconsistent die-cutting results. Uniform caliper control is mandatory for
precision packaging automated assembly lines.
HAOEN Advantage:
HAOEN digital micrometers use
high-accuracy displacement sensors with standardized anvil pressure to eliminate
human operator measurement variance.
Resolution down to 0.001 mm (1 micron).
Automated motorized anvil lowering options for repeatable testing.
Meets ISO 534 and TAPPI T411 specification guidelines.
8. Packaging Drop Tester
A packaging drop tester drops a filled container from controlled heights onto a rigid strike plate. It evaluates how well structural packaging protects enclosed products against free-fall impacts on corners, edges, and flat surfaces.
Why It Is Essential for 2026:
Direct-to-consumer
e-commerce delivery routes subject packages to multiple manual drop points.
Verifying drop durability reduces product breakage claims and expensive return
logistics.
HAOEN Advantage:
HAOEN single-arm and dual-arm drop
testers feature precision drop mechanisms and heavy electromagnetic releases
that prevent rotational disturbance during free fall.
Supports drop tests on flat faces, long edges, and structural corners.
Adjustable drop height settings from 300 mm up to 2000 mm.
Meets ASTM D5276 and ISO 2248 standards.
9. Paper Smoothness and Roughness Tester
Paper smoothness testing equipment measures the rate of air leakage across the paper surface under specified pressure conditions (such as the Bekk or Bendtsen method).
Why It Is Essential for 2026:
High-resolution printing,
metallic foiling, and anti-counterfeiting codes require smooth paper surfaces.
Rough surfaces absorb ink unevenly, resulting in blurry graphics and unreadable
barcodes.
HAOEN Advantage:
HAOEN smoothness instruments incorporate
high-precision air flow sensors and automated pneumatic clamping systems to
deliver rapid testing throughput in busy quality control laboratories.
Digital display showing real-time air leakage rates.
Built-in calibration modes ensure long-term measuring accuracy.
Complies with ISO 5627 (Bekk) and TAPPI T479.
10. Rapid Moisture Analyzer
A rapid moisture analyzer determines the moisture percentage in paper or pulp samples using halogen heating combined with continuous precision weighing balance technology.
Why It Is Essential for 2026:
Excess moisture causes
paper warping, mold development, and adhesive bonding failures. Excessively dry
paper becomes brittle, cracking along score lines during box folding
processes.
HAOEN Advantage:
HAOEN moisture analyzers offer fast
drying cycles with uniform thermal distribution, allowing real-time moisture
monitoring directly on the factory floor or inside the QC laboratory.
Rapid heating technology shortens test times to minutes.
Clear graphical display shows moisture loss curves during heating.
Programmable drying modes tailored to lightweight paper or heavy board.
Lab Setup Guide: Building an Efficient Paper QC Lab in 2026
Selecting reliable paper testing instruments is only the first step. Building an efficient paper testing laboratory requires strategic planning around operational standards and procurement models.
1. Ensure Compliance with International Standards
Verify that your testing equipment complies with international standard organizations including ISO, TAPPI, ASTM, and SCAN. Using non-standard testing equipment risks non-compliance during customer audits and third-party facility verifications.
2. Focus on Data Automation and LIMS Integration
Modern quality assurance systems require full data traceability. Select paper testing equipment with digital interfaces (RS232, USB, or Ethernet) capable of exporting test results directly into your laboratory information management system (LIMS).
3. Source Directly from Experienced Manufacturers
Purchasing paper testing equipment through third-party distributors often adds excessive markups and delays after-sales service. Sourcing directly from factory-direct original equipment manufacturers optimizes your procurement budget and ensures direct access to spare parts and technical engineers.
Why Choose HAOEN Testing Equipment?
HAOEN is a leading manufacturer of high-precision testing equipment based in Dongguan, China. Since 2013, HAOEN has engineered durable, accurate, and cost-effective testing instruments for global packaging paper manufacturers, container plants, and research facilities.
13+ Years of Manufacturing Expertise: Over a decade of research and development dedicated strictly to physical material testing solutions.
Factory Direct Value: By eliminating middleman trading markups, HAOEN supplies premium laboratory equipment at competitive factory prices.
Fast Lead Times: Automated manufacturing lines enable quick delivery turnarounds between 7 and 15 business days for standard testing models.
Strict Quality Control System: Every instrument undergoes comprehensive multi-point calibration and load cell verification in our internal testing facility prior to export dispatch.
Global Customer Support: HAOEN products are trusted by laboratory managers in over 50 countries, backed by 24/7 technical assistance and complete OEM/ODM customization capabilities.
Frequently Asked Questions (FAQ)
Q1: Why is paper testing essential for paper manufacturers and
packaging suppliers?
A1: Paper testing guarantees
that raw materials and finished corrugated containers meet structural
performance standards. Regular testing prevents box failure during
transportation, reduces customer returns, optimizes paper formulation costs, and
confirms compliance with ISO and TAPPI packaging standards.
Q2: What is the difference between ECT and BCT
tests?
A2: The Edge Crush Test (ECT) measures the
compressive strength of a small edge-wise specimen of corrugated board. The Box
Compression Test (BCT) measures the overall load-bearing capacity of a fully
assembled, complete corrugated box. ECT measures material quality, while BCT
evaluates total finished structure performance.
Q3: How do HAOEN paper testing instruments comply with global testing
standards?
A3: HAOEN paper testing equipment is
designed, machined, and calibrated strictly according to published international
specifications, including TAPPI T810, TAPPI T414, ISO 2758, ISO 3037, and ASTM
D642. Calibration certificates are provided with every factory shipment.
Q4: How often should we calibrate paper testing equipment in a
quality control lab?
A4: Quality control
laboratories should calibrate high-use instruments (such as bursting strength
testers and tensile machines) annually under normal operating conditions.
High-volume testing facilities running 24/7 operations typically perform load
cell calibration checks every 6 months to maintain absolute accuracy.
Q5: Can HAOEN provide custom testing solutions for non-standard paper
packaging?
A5: Yes. HAOEN operates an experienced
engineering team capable of customizing sample clamping fixtures, custom
compression platen sizes, special force capacities, and custom test control
software tailored to your specific application needs.
