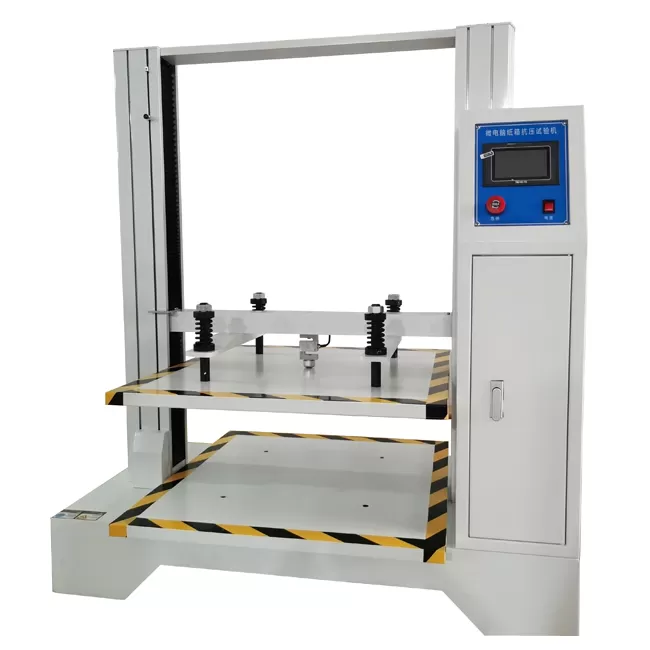

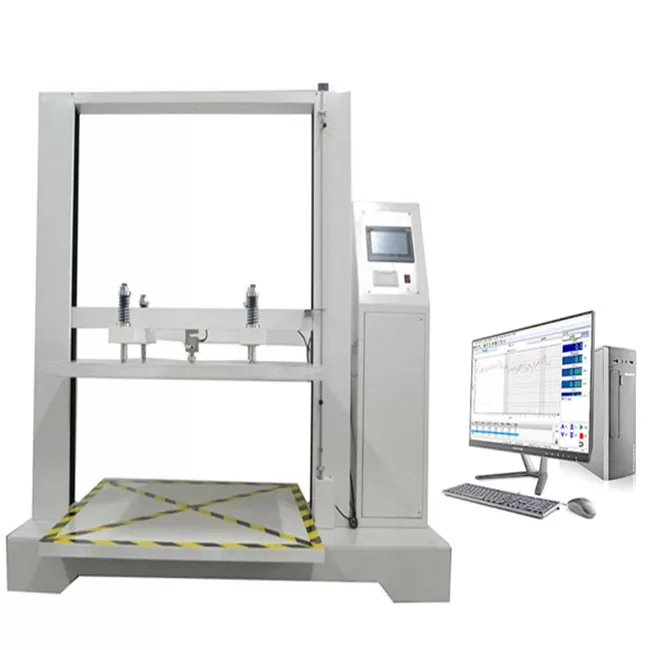

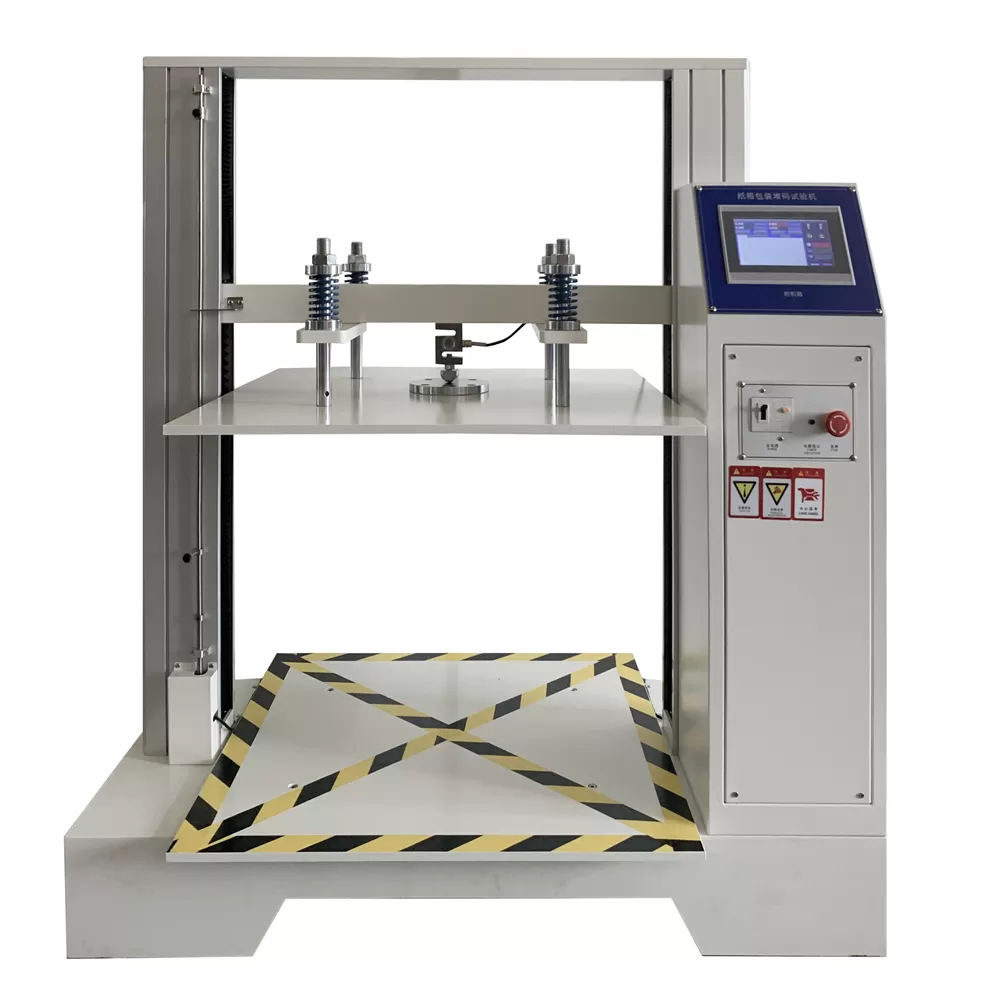

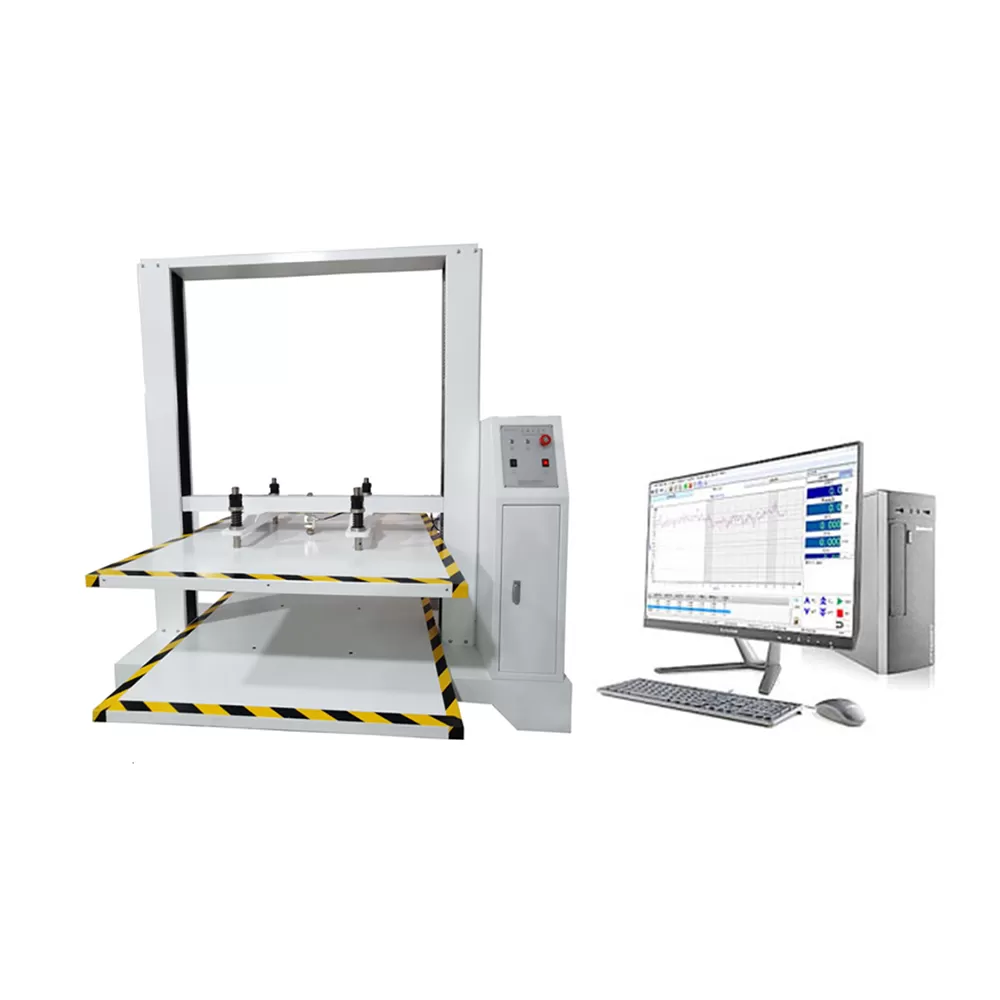

Carton Compression Tester

Description:

Carton compression tester, also known as box compression strength tester, is a professional laboratory testing instrument designed to evaluate the vertical pressure resistance, stacking performance and structural stability of various packaging containers. It simulates the actual vertical stacking pressure that cartons and packaging boxes bear during warehouse storage, container transportation, cargo handling and logistics circulation. By applying continuous static pressure to test samples, the machine accurately detects the maximum compressive load, deformation degree and collapse limit of packaging boxes, helping packaging manufacturers, brand factories and third-party testing institutions strictly control packaging quality, avoid cargo damage caused by box crushing during logistics, and optimize packaging box structure design reasonably.

Application:

• Packaging industry:

Corrugated carton factories, honeycomb board manufacturers, paper tube & paper can producers

• Consumer goods:

Food, beverage, daily cosmetics, snacks, wine packaging

• Electronic & home appliances:

TV, refrigerator, small household appliances, digital product outer packages

• Logistics & e-commerce:

Express parcels, logistics distribution packaging

• Textile & footwear:

Clothing, shoe box packaging

• Plastic packaging:

Plastic buckets, rigid plastic containers

• Third-party testing laboratories, quality supervision institutes, brand manufacturer QC labs

Specifications:

Test Modes

Three standard test modes are integrated to meet all mainstream packaging compression test requirements:

1. Ultimate Compression Test:

Continuously apply pressure until the carton is deformed or crushed automatically. Record the maximum compressive strength, real-time pressure change and displacement deformation curve of the sample, which is used for raw material incoming inspection and finished product quality grading.

2. Fixed Load Holding Test:

Set specified pressure value and holding duration. The machine maintains constant pressure automatically to detect whether the packaging box can keep intact without permanent deformation under long-term fixed load, matching long-time warehouse stacking scenarios.

3. Simulation Stacking Test:

Restore actual warehouse multi-layer stacking working condition. Calculate safe stacking height and maximum allowable stacking layers according to test data, providing direct data support for warehouse cargo

Advantages:

• High Precision & Stable Performance:

Equipped with imported high-precision pressure sensor with test accuracy up to ±1% FS. Adopt precision servo motor and ball screw transmission structure, ensuring uniform pressure application, no impact force during testing and highly repeatable test results.

• Intelligent Touch Control System:

7-inch industrial colorful touch screen with full English operation interface. Support one-click start, automatic test, real-time display of pressure-time curve and displacement data. All test data can be stored, queried, printed and exported via USB flash drive conveniently.

• Multiple Safety Protection Functions:

Built-in overpressure protection, over-travel emergency stop, overload alarm and power-off memory functions. The machine stops running immediately once abnormal status occurs to protect operators and equipment effectively.

• Wide Test Range & Adjustable Platform:

Large test space fits small cosmetic boxes to large industrial corrugated cartons. The upper pressing plate height can be adjusted freely to adapt to samples of different sizes without replacing extra fixtures.

• Durable Industrial Structure:

Integral thick steel frame structure, anti-deformation design for long-term frequent testing. Surface electrostatic spraying treatment achieves anti-corrosion, wear-resistant and easy-cleaning effects, adapting to harsh laboratory and factory workshop environments.
